СКУ: 33536

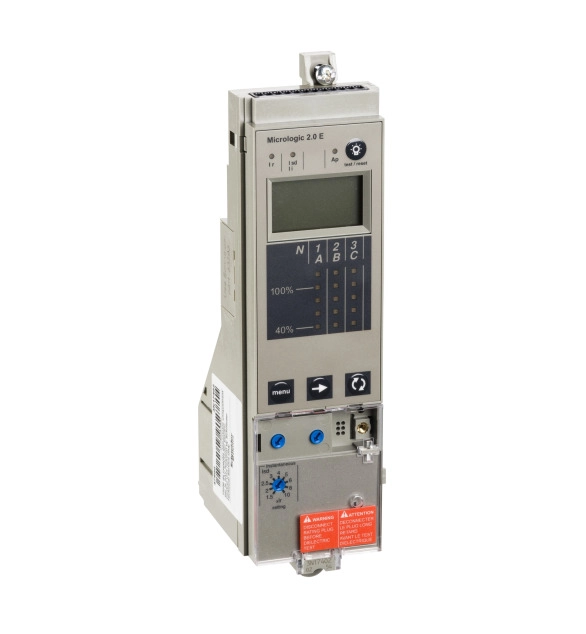

Контролен блок MicroLogic 2.0E, ComPact NS630b/NS1600, изваждаем, основни защити (LI), електромер
-
Brand
Schneider Electric
-
Rated permanent current Iu
1600
-
Rated control supply voltage Us at DC
24
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Overload release current setting
252
-
With ground fault protection function
FALSE
-
Initial value of the undelayed short-circuit release - setting range
378
-
Short-circuit release function
EV003978
-
End value adjustment range undelayed short-circuit release
16000
Micrologic 2.0E (Energy meter) is an electronic control unit used on Compact NS630b to NS1600 drawout circuit breakers. This control unit has a basic protection (LI) and is designed to protect power circuits and loads. It embeds adjustable long time protection against overloads. It provides also adjustable instantaneous protection against short-circuits. Micrologic 2.0E indicates overloads with an Alarm LED. It is able to display the trip cause through 3 others LEDs. Micrologic 2.0E is equipped with a digital LCD screen that displays the active energy with 2% accuracy. This control unit can be associated with drawout Compact NS basic frame.
