SpaceLogic VP220F PIBCV (PICV) Контролен клапан, 2-Way, PN16, DN100, Flanged, High Flow: 23.6...59 m?/h (6.6...16.4 l/s). | Spark & Co
  • 3D
|

СКУ: VP220F-100CQH

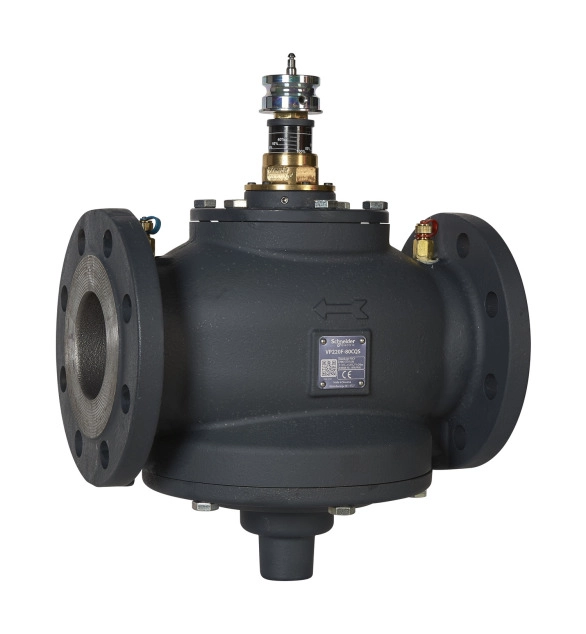

SpaceLogic VP220F PIBCV (PICV) Контролен клапан, 2-Way, PN16, DN100, Flanged, High Flow: 23.6...59 m?/h (6.6...16.4 l/s).

  • Brand
    Schneider Electric
  • Explosion-proof
    FALSE
  • Surface protection
    EV006034
  • Suitable for manual operation
    TRUE
  • Position reporting system
    EV000494
  • Ambient temperature
    -10
  • Auxiliary contacts
    FALSE
  • Adjustable operating range
    FALSE
  • With coupling connection 1
    FALSE
  • With coupling connection 2
    FALSE
  • Flange compression class
    EV020104
  • Adjustable position feedback signal
    FALSE
  • Control signal
    EV021430
  • With end contacts
    FALSE
  • Article compression class
    EV020104
  • Max. medium temperature (continuous)
    120
  • Min. medium temperature (continuous)
    -10
  • Material quality
    EV020188
  • Leakage loss of Kvs value
    0.05
  • Housing material
    EV000117
  • Connections
    EV000106
  • Outer pipe diameter all connections
    100
  • Nominal diameter
    EV020217
  • Zero-pressure return flow
    EV000494
  • Closing pressure
    16
  • Characteristic curve
    EV020004
  • Max. pressure difference in opened position
    16

The VP220F is an automatic balancing and control valve that provide flow limitation with full control authority over hydronic regulation. It provides stable flow regulation regardless of pressure fluctuations in the system and is adjustable flow limitation set point. Applications are temperature control of chillers, airhandling units, heat exchanges and terminal units such as fan coils, induction units and radiant panels. Reduced Energy Consumption, Improved Comfort, Reduced Pumping Costs, Reduced Installation Costs, Easy and quick Comminssioning, and Improved Reliability. DN100, Flanged Valve. High Flow.
