3-фазен стъпков мотор - 4.52 Nm - вал O 12 mm - L=98 mm - със спирачка

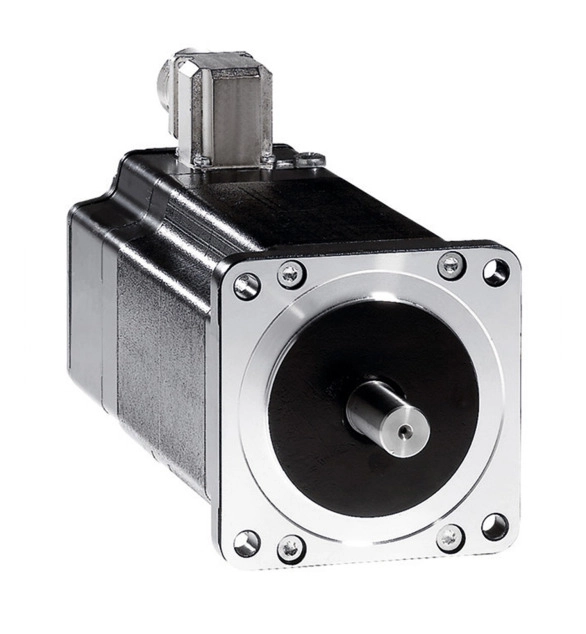

This product belongs to the range Lexium SD3 & Motors 3-phase stepper drives and stepper motors. It is a 3-phase stepper motor with 6.78Nm holding torque. Its shaft diameter is 14mm, and its shaft length is 30mm. This 3-phase stepper motor carries out precise step by step movements that are predefined by a stepper motor drive such as Lexium SD2 drives. The maximum mechanical speed of this 3 -phase stepper motor is 3000rpm, it has no brake. Its electrical connection is made on a Terminal box. It measures 110.5mm long, its flange size is 85mm square diameter. It weighs 4.3kg. This BRS stepper motor is designed for Lexium SD3 stepper motor drives and suitable for short-distance positioning, such as labelling. It is compliant with IEC 60072-1 and EN 50347 standards. This motor is designed to be compatible with Lexium SD3 stepper motor drives and optionnal Encoders or planetary gearboxes. It installs on 4x holes (6.5mm diameter), the squarediameter of the mounting holes is 70mm. Lexium SD3 & BRS3, Three-phase range up to 19.7Nm with high accuracy and high torque at low rotation speeds. The SD3 is a universally applicable stepper motor drive. Connect the stepper motor to the drive, set the current and step resolution, it is ready.
