VF209W High Pressure Butterfly Valve, 2-Way, DN125, Wafer Flanged, Nylon Disc, EPDM Liner, Kvs 1083 , Max ?P 1200 kPa | Spark & Co
  • 3D
|

СКУ: VF209W-125CN

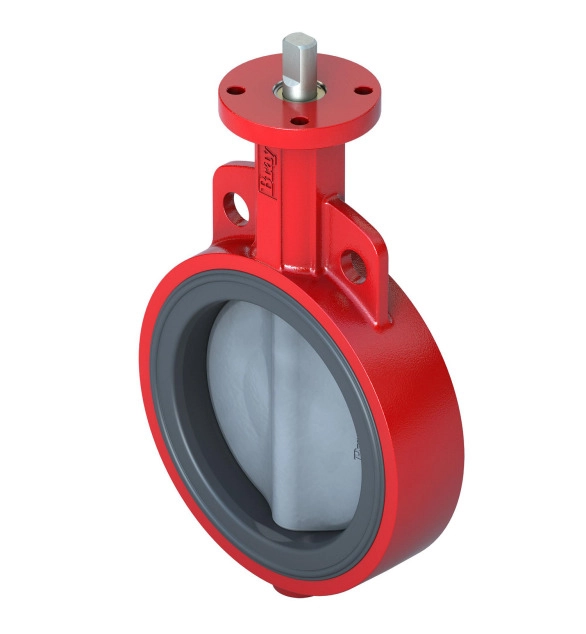

VF209W High Pressure Butterfly Valve, 2-Way, DN125, Wafer Flanged, Nylon Disc, EPDM Liner, Kvs 1083 , Max ?P 1200 kPa

  • Brand
    Schneider Electric
  • Article compression class
    EV020104
  • Material housing
    EV000117
  • Material quality
    EV020188
  • Surface protection
    EV001753
  • Material spindle
    EV000154
  • Material quality valve butterfly
    EV000154
  • Flange compression class
    EV000154
  • VdS quality mark
    FALSE
  • Housing lining
    EV020656
  • Medium temperature (continuous)
    -29
  • Type approval according to BBR/EKS
    FALSE
  • Material valve butterfly
    EV000154
  • Valve butterfly lined
    FALSE
  • Angle of the valve
    90
  • KIWA certified
    FALSE
  • Gastec QA mark
    FALSE
  • Connections
    EV000154
  • Permitted by NCP
    FALSE
  • Operation
    EV000154
  • Sealing
    EV006730
  • LPCB quality mark
    FALSE
  • FM quality mark
    FALSE
  • Standard
    EV021181
  • ULC quality mark
    FALSE
  • UL quality mark
    FALSE
  • Valve design
    EV020476
  • Fire-safe
    FALSE
  • Material primary spindle seal
    EV006730
  • Material quality spindle
    EV000154
  • Outer pipe diameter all connections
    125
  • Nominal diameter
    EV020218
  • Kvs value
    1083
  • Construction length
    324
  • Height operating element
    190
  • Length operating element
    324
  • Diameter handwheel
    210

The VF209W is a premium high pressure butterfly valve for heavy duty HVAC and industrial applications. The valve is used as an isolation valve or a control valve. The valve disc is coated with Nylon 11 thermoplastic material ensuring excellent durabiility against corrosion. Optimised seat and disc design for high close off pressures and Nylon valve disc coating for a better friciton resistance and protection for aggressive water. Valve size: DN125, Flange, Flow capacity, Kvs: 1.083 m³/h. Constructed and flanged to PN6, PN10, PN16 pressure classes. ΔPm of maximum 1200 Kpa. EPDM seals provide a working temperature range of -29 °C to + 121 °C, and a tight closing of the butterfly valve with the maximum close-of pressure. The flow characteristic is near equal percent up to 70° disc angle. The valve is manufatured in accordance with conformity assessment procedure: PED 97/23/EC. Category III.
