СКУ: VP222F-200CQS

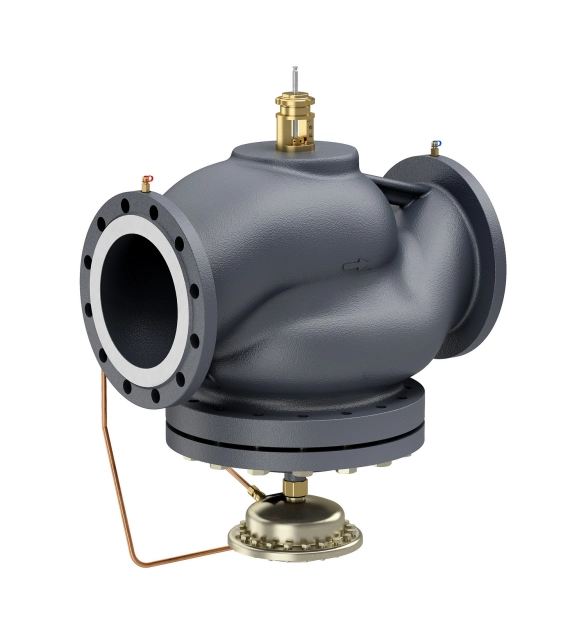

SpaceLogic VP222F PIBCV (PICV) Контролен клапан, 2-Way, PN16, DN200, Flanged, Standard Flow: 76...200 m?/h (21...56 l/s).
-
Brand
Schneider Electric
-
Explosion-proof
FALSE
-
Surface protection
EV006034
-
Suitable for manual operation
TRUE
-
Position reporting system
EV000494
-
Ambient temperature
-10
-
Auxiliary contacts
FALSE
-
Adjustable operating range
FALSE
-
With coupling connection 1
FALSE
-
With coupling connection 2
FALSE
-
Flange compression class
EV020104
-
Leakage loss of Kvs value
0.01
-
Height
31
-
Adjustable position feedback signal
FALSE
-
Width
66
-
Control signal
EV021430
-
With end contacts
FALSE
-
Article compression class
EV020104
-
Max. medium temperature (continuous)
120
-
Min. medium temperature (continuous)
-10
-
Material quality
EV020188
-
Housing material
EV000117
-
Connections
EV000106
-
Outer pipe diameter all connections
150
-
Nominal diameter
EV020219
-
Zero-pressure return flow
EV000494
-
Closing pressure
16
-
Characteristic curve
EV020004
-
Max. pressure difference in opened position
16
The VP222F is an automatic balancing and control valve that provide flow limitation with full control authority over hydronic regulation. It provides stable flow regulation regardless of pressure fluctuations in the system and is adjustable flow limitation set point. Applications are temperature control of chillers, airhandling units, heat exchanges and terminal units such as fan coils, induction units and radiant panels. Reduced Energy Consumption, Improved Comfort, Reduced Pumping Costs, Reduced Installation Costs, Easy and quick Comminssioning, and Improved Reliability. DN200, Flanged Valve. Standard Flow.
