SCHNEIDER ELECTRIC Wall mounted steel enclosure, Spacial S3D, plain door, with mounting plate, 600x400x250mm, IP66, IK10 | Spark & Co
  • 3D
|

СКУ: NSYS3D6425P

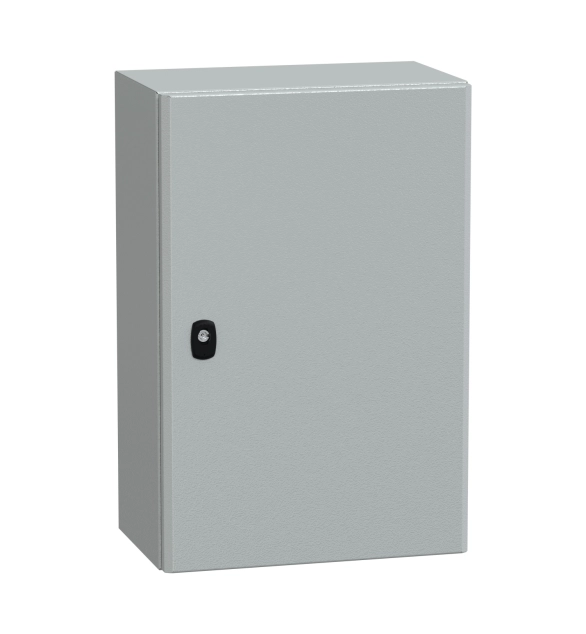

SCHNEIDER ELECTRIC Wall mounted steel enclosure, Spacial S3D, plain door, with mounting plate, 600x400x250mm, IP66, IK10

  • Brand
    Schneider Electric
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • With mounting plate
    TRUE
  • Surface finishing
    EV008895
  • Material
    EV000179
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Width
    500
  • Degree of protection (NEMA)
    EV014040
  • Degree of protection (IP)
    EV006422
  • Height
    700
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Suitable for metrical mounting
    TRUE
  • Pitched roof
    FALSE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Floor standing wall model
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Depth
    250
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    250
  • Max. permissible load of the enclosure according to IEC 62208
    250
  • Max. permissible load of the door(s) according to IEC 62208
    50

PanelSeT S3D steel wall-mounting enclosure is designed for multi-purpose applications in harsh environments It is certified by cUL, GL, LR, UL, DNV and BV The enclosure has a nominal height, width and depth of 700mm, 500mm and 250mm, respectively The enclosure is grey-coloured (RAL 7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a mounting plate, a plain door with a lock and a cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The mounting plate is plain and can be removed with a fixing element The net weight of the enclosure is 19kg It has a NEMA 4X/13 rating and a IK10 (IEC62262) rating, making it highly resistant to dust and water with an IP66 rating (IEC60529) The enclosure also has a gutter-shaped front rail double sheet thickness and a single piece body It is accessible from the front for operation
