Стандартна Ръкохватка, Compact NSX100/160/250, червена дръжка/жълта предна част, IP40 | Spark & Co
  • 3D
|

СКУ: LV429339T

Стандартна Ръкохватка, Compact NSX100/160/250, червена дръжка/жълта предна част, IP40

  • Brand
    Schneider Electric
  • Suitable for switch disconnector
    FALSE
  • Suitable for power circuit breaker
    TRUE
  • With extension shaft
    FALSE
  • Suitable for emergency stop
    FALSE
  • With restart blockage
    FALSE
  • Padlock locking
    TRUE
  • Colour
    EV000233
  • With key lock
    TRUE

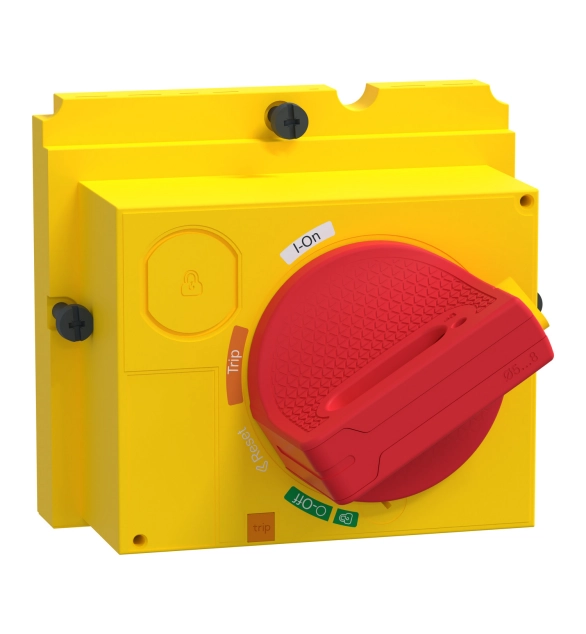

It is a direct rotary handle for ComPacT NSX 100/160/250 and PowerPact Multistandard H/J frames devices. It is suitable for isolation and it is used for machine tool control. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a red handle on yellow front. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.
