СКУ: LV429337T
Стандартна Ръкохватка, Compact NSX100/160/250, черна дръжка, IP40
-
Brand
Schneider Electric
-
Colour
EV000206
-
Suitable for switch disconnector
FALSE
-
Suitable for power circuit breaker
TRUE
-
With extension shaft
FALSE
-
Suitable for emergency stop
FALSE
-
With restart blockage
FALSE
-
Padlock locking
TRUE
-
With key lock
TRUE

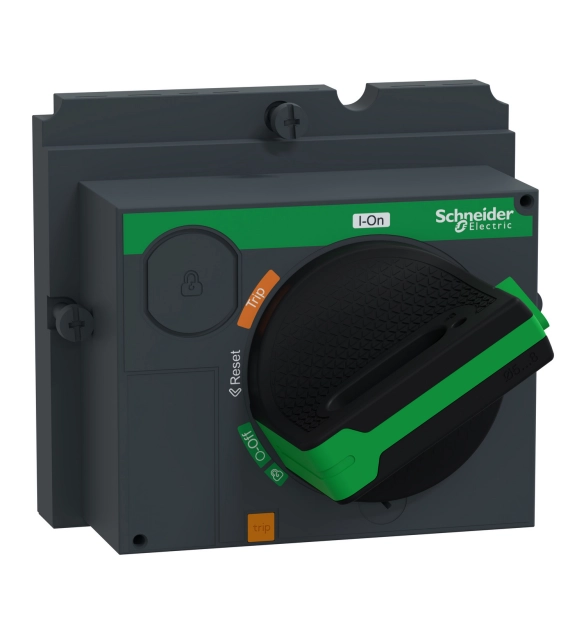

It is a direct rotary handle for ComPacT NSX 100/160/250, PowerPact Multistandard H/J frames devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.
