СКУ: A9L15692
Катоден отводител PF 20 20 KA 340V 1P N
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Integrated short-circuit protection
FALSE
-
Leakage-current free
FALSE
-
System configuration DC
FALSE
-
System configuration TN
FALSE
-
System configuration IT
FALSE
-
Signalling at the device
EV000428
-
System configuration TN-C-S
FALSE
-
Mounting method
EV005503
-
System configuration other
FALSE
-
Integrated backup fuse
FALSE
-
Category type 2
TRUE
-
Short-circuit breaking capacity (Isccr)
25
-
System configuration TN-C
FALSE
-
System configuration TT
TRUE
-
Nominal voltage AC
230
-
With remote signalling contact
FALSE
-
Construction size
EV006974
-
System configuration TN-S
TRUE
-
Voltage protection level N-PE
1.5
-
Number of conductors (without earthing)
1
-
Voltage protection level L-N
1.1
-
Max. overcurrent protection device, series connection (fuse)
40
-
Max. overcurrent protection device, parallel connection (fuse)
40
-
Nominal discharge surge current (8/20)
5
-
Max. discharge surge current (8/20)
20
-
Max. conductor cross section flexible (fine-strand)
16
-
Max. continuous voltage AC
340
-
Voltage protection level
1.1
-
Max. conductor cross section solid (solid, stranded)
16

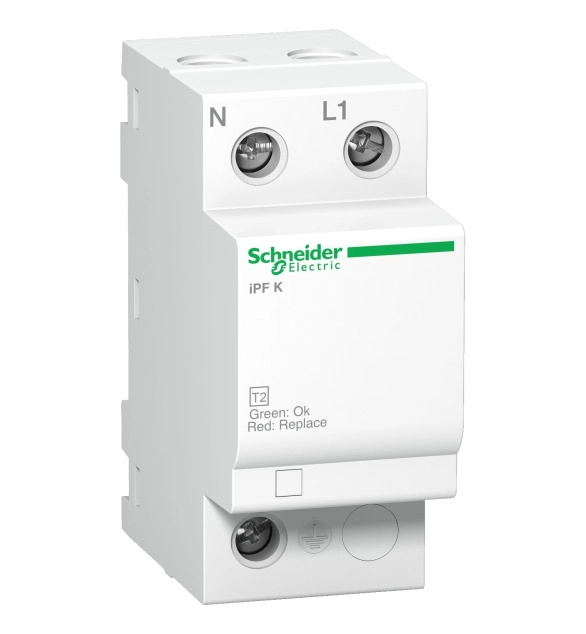

This Acti9 iPF K 20 product is a modular surge arrester. It protects 1P+N installations. The Imax maximum discharge current is 20kA .The In nominal discharge current is 5kA. The multi-pole single-piece surge arrester range is adapted for TT, TN-S, TN-C earthing systems. This type 2 incoming protection surge arrester is recommended for a medium risk level. The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and is 340VAC between phase and earth. The Up Voltage protection level is 1.5kV in common mode (between neutral and earth) and is 1.1kV in differential mode (between phase and neutral). The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 36mm x (H) 81mm x (D) 69mm. The weight is 210g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with IEC 61643-11 and EN 61643-11 standards.
