СКУ: A9L40501
iPRD 40R 40 KA 340V 1P+ N с комуникация
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Integrated short-circuit protection
FALSE
-
Leakage-current free
FALSE
-
System configuration DC
FALSE
-
System configuration TN
FALSE
-
System configuration IT
FALSE
-
Signalling at the device
EV000428
-
Nominal voltage AC
400
-
System configuration TN-C-S
FALSE
-
Mounting method
EV005503
-
System configuration other
FALSE
-
With remote signalling contact
TRUE
-
Integrated backup fuse
FALSE
-
Category type 2
TRUE
-
Max. continuous voltage AC
350
-
System configuration TN-C
FALSE
-
System configuration TT
TRUE
-
Construction size
EV006974
-
System configuration TN-S
TRUE
-
Number of conductors (without earthing)
1
-
Max. discharge surge current (8/20)
40
-
Max. overcurrent protection device, series connection (fuse)
80
-
Voltage protection level N-PE
1.4
-
Short-circuit breaking capacity (Isccr)
50
-
Voltage protection level
1.4
-
Max. conductor cross section solid (solid, stranded)
25
-
Max. conductor cross section flexible (fine-strand)
16
-
Nominal discharge surge current (8/20)
15
-
Voltage protection level L-N
1.4
-
Max. overcurrent protection device, parallel connection (fuse)
63

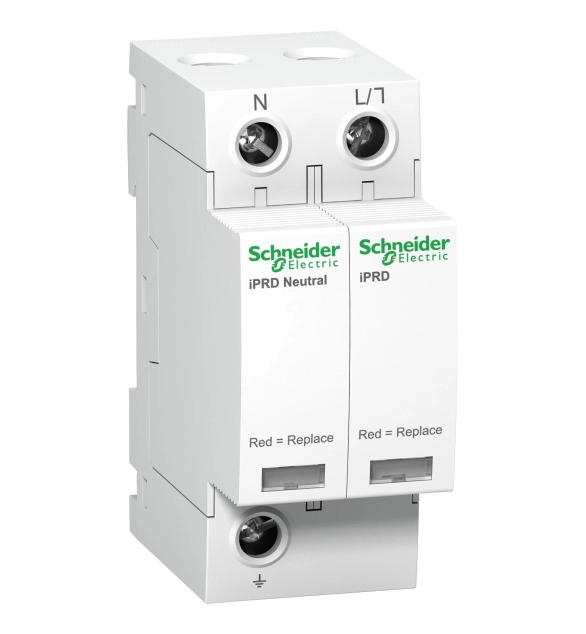

This Acti9 iPRD40r surge arrester protects 1P+N installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for high risk level in incoming panel board. It offers remote reporting of the "cartridge must be changed" message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode (between neutral and earth) is 260VAC. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 350VAC. The Up Voltage protection level is 1.4kV in common mode (N/PE) and 1.6kV in differential mode (L/N) . The Ue rated operational voltage is 230VAC or 400VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 36mm x (H) 85mm x (D) 69mm. The weight is 220g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.
