Катоден отводител iPRD 40 40 KA 350V 1PN | Spark & Co
  • 3D
|

СКУ: A9L40500

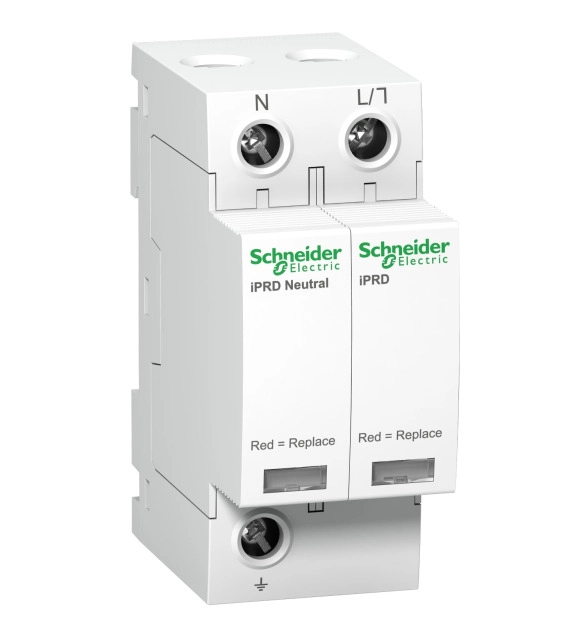

Катоден отводител iPRD 40 40 KA 350V 1PN

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Integrated short-circuit protection
    FALSE
  • Leakage-current free
    FALSE
  • System configuration DC
    FALSE
  • System configuration TN
    FALSE
  • System configuration IT
    FALSE
  • Signalling at the device
    EV000428
  • Max. conductor cross section solid (solid, stranded)
    35
  • Max. conductor cross section flexible (fine-strand)
    35
  • System configuration TN-C-S
    FALSE
  • Mounting method
    EV005503
  • System configuration other
    FALSE
  • Integrated backup fuse
    FALSE
  • Category type 2
    TRUE
  • Max. continuous voltage AC
    350
  • System configuration TN-C
    FALSE
  • System configuration TT
    TRUE
  • With remote signalling contact
    FALSE
  • Construction size
    EV006974
  • System configuration TN-S
    TRUE
  • Number of conductors (without earthing)
    1
  • Max. discharge surge current (8/20)
    40
  • Max. overcurrent protection device, series connection (fuse)
    80
  • Voltage protection level N-PE
    1.4
  • Short-circuit breaking capacity (Isccr)
    50
  • Voltage protection level
    1.4
  • Nominal discharge surge current (8/20)
    15
  • Nominal voltage AC
    350
  • Voltage protection level L-N
    1.4
  • Max. overcurrent protection device, parallel connection (fuse)
    63

This Acti9 iPRD40 surge arrester protects 1P+N installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for high risk level and incoming panel board. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. This Acti9 iPRD40 is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and 350VAC between phase and earth. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 350VAC. The Up Voltage protection level is 1.4kV in common mode (N/PE) and in differential mode (L/N). The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 36mm x (H) 85mm x (D) 69mm. The weight is 211g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.
