Катоден отводител PF 40 40 KA 340V 3P N | Spark & Co
  • 3D
|

СКУ: A9L15688

Катоден отводител PF 40 40 KA 340V 3P N

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Integrated short-circuit protection
    FALSE
  • Leakage-current free
    FALSE
  • System configuration DC
    FALSE
  • System configuration TN
    FALSE
  • System configuration IT
    FALSE
  • Voltage protection level
    1.5
  • Number of conductors (without earthing)
    3
  • Signalling at the device
    EV000428
  • Nominal voltage AC
    400
  • System configuration TN-C-S
    FALSE
  • Mounting method
    EV005503
  • System configuration other
    FALSE
  • Integrated backup fuse
    FALSE
  • Category type 2
    TRUE
  • Short-circuit breaking capacity (Isccr)
    25
  • System configuration TN-C
    FALSE
  • System configuration TT
    TRUE
  • With remote signalling contact
    FALSE
  • Voltage protection level L-N
    1.5
  • System configuration TN-S
    TRUE
  • Construction size
    EV007011
  • Voltage protection level N-PE
    1.5
  • Max. discharge surge current (8/20)
    40
  • Max. overcurrent protection device, series connection (fuse)
    40
  • Max. overcurrent protection device, parallel connection (fuse)
    40
  • Max. conductor cross section solid (solid, stranded)
    25
  • Max. conductor cross section flexible (fine-strand)
    16
  • Nominal discharge surge current (8/20)
    15
  • Max. continuous voltage AC
    340

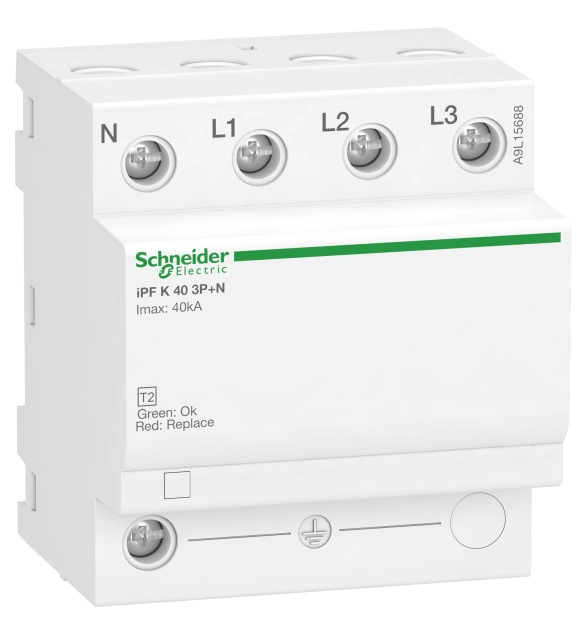

This Acti9 iPF K 40 product is a modular surge arrester. It protects 3P+N installations. The Imax maximum discharge current is 40kA .The In nominal discharge current is 15kA. The multi-pole single-piece surge arrester range is adapted for TT and TN-S earthing systems. This type 2 incoming protection surge arrester is recommended for a medium risk level. The Uc maximum continuous operating voltage in common mode (between neutral and earth) is 260VAC. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 340VAC. The Up Voltage protection level is 1.5kV in common mode (between neutral and earth) and in differential mode (between phase and neutral). The Ue rated operational voltage is 230VAC or 400VAC +/- 10%. The product colour is white (RAL 9003). The dimensions are (W) 72mm x (H) 81mm x (D) 69mm. The product weight is 420g. The IP degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is from -25°C to +60°C. The storage temperature is from -40°C to +85°C. This product complies with IEC 61643-11 and EN 61643-11 standards.
