СКУ: A9L20601

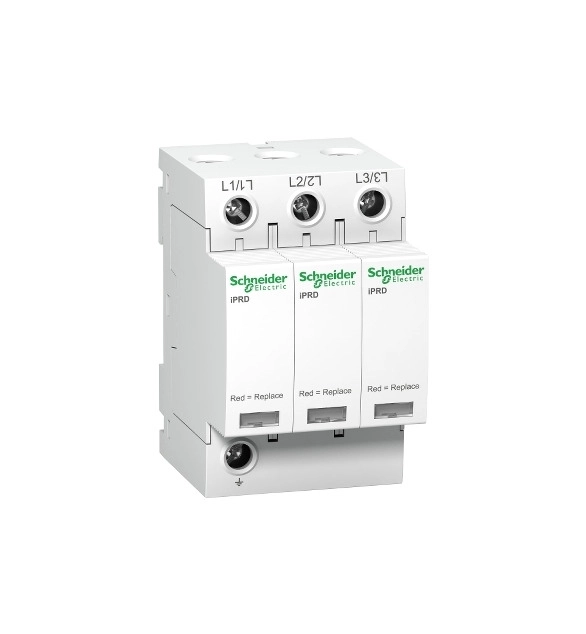

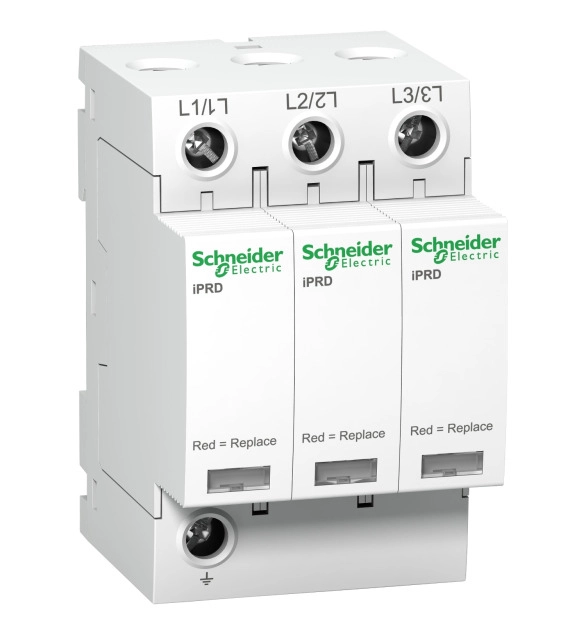

Катоден отводител IPRD 20R 20 KA 350V 3PN WITH REMOTE TRAN
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Integrated short-circuit protection
FALSE
-
System configuration TN-C
TRUE
-
Leakage-current free
FALSE
-
System configuration DC
FALSE
-
System configuration TN
FALSE
-
System configuration IT
FALSE
-
System configuration TT
FALSE
-
System configuration TN-S
FALSE
-
Signalling at the device
EV000428
-
System configuration TN-C-S
FALSE
-
Mounting method
EV005503
-
System configuration other
FALSE
-
Integrated backup fuse
FALSE
-
Category type 2
TRUE
-
Max. continuous voltage AC
350
-
With remote signalling contact
FALSE
-
Construction size
EV007011
-
Number of conductors (without earthing)
4
-
Voltage protection level L-N
1.1
-
Max. overcurrent protection device, series connection (fuse)
80
-
Short-circuit breaking capacity (Isccr)
50
-
Max. overcurrent protection device, parallel connection (fuse)
40
-
Nominal discharge surge current (8/20)
5
-
Max. discharge surge current (8/20)
20
-
Max. conductor cross section solid (solid, stranded)
25
-
Max. conductor cross section flexible (fine-strand)
16
-
Voltage protection level N-PE
1.1
-
Nominal voltage AC
350
-
Voltage protection level
1.1
This Acti9 STI isolatable fuse-carriers is a low voltage fuse-disconnector. It is used for tertiary and industrial applications requiring a high breaking capacity. It has 1P+N pole, up to 10A rated current, and gG or aM fuse curve with a fuse cartridge type of 8.5mm x 31.5mm. it can be mounted on DIN rail for modular installation. The general purpose fuse (gG fuse) provides overload and short-circuit protection. The aM fuse for motor application provides short-circuit protection (protection of loads with a high peak current). it has an IP20 degree of protection on its terminals, becoming IP40 once in modular enclosure. A clip-on marker is visible on front face or on downstream terminal to identify fuse presence. An optional 230V neon indicator light indicates fuse blowing (off in normal operation and lit red after fuse blowing). The device is provided with a captive fuse-carrier and an additional housing for a spare fuse. Its toggle can also be padlocked.
