СКУ: A9W14225

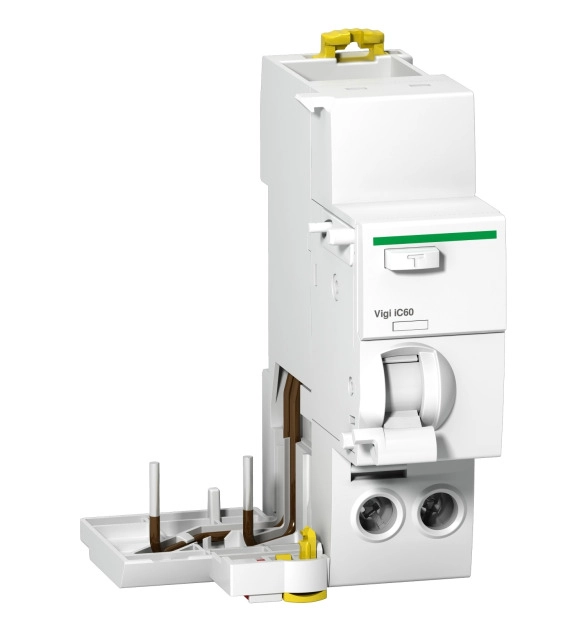

Vigi iC60 - допълнителен блок за утечка на земя - 2P - 25A - 300mA - AC тип
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Number of poles
2
-
Connectable conductor cross section multi-wired
1
-
Pollution degree
3
-
Nominal voltage
230
-
Delay adjustable
FALSE
-
Frequency
EV008015
-
Rated fault current
0.3
-
Rated fault current adjustable
FALSE
-
Anti-nuisance tripping version
FALSE
-
Surge current capacity
0.25
-
Rated impulse withstand voltage Uimp
6
-
Connectable conductor cross section solid-core
1
-
Rated insulation voltage Ui
500
-
Ambient temperature during operating
-5
-
Leakage current type
EV000460
-
With interlocking device
FALSE
-
Nominal current
25
-
Max. delay time
This Acti9 Vigi iC60 is a modular add-on residual current devices. It is a 2P, rated current is 25A, operating voltage is 230VAC to 415VAC according to IEC 61009-1. The earth leakage protection class is AC type with a sensitivity of 300mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. A VisiTrip window is here to indicate a fault tripping by a red mechanical indicator on the front face. It can be combined with Acti9 iC60 circuit breaker to provide protection of persons and protection of installations. This product is compliant with IEC 61009-1 and EN 61009-1 standard. The Ue rated operational voltage is 230VAC or 400VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 3. The dimensions are (W) 63mm x (H) 91mm x (D) 74mm. The weight is 0.165kg. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature -5°C to +60°C. The storage temperature is -40°C to +85°C.
