Подово задвижващо устройство - ATV930 - 160kW - 400/440V- без спирачка - IP21 | Spark & Co
  • 3D
|

СКУ: ATV930C16N4F

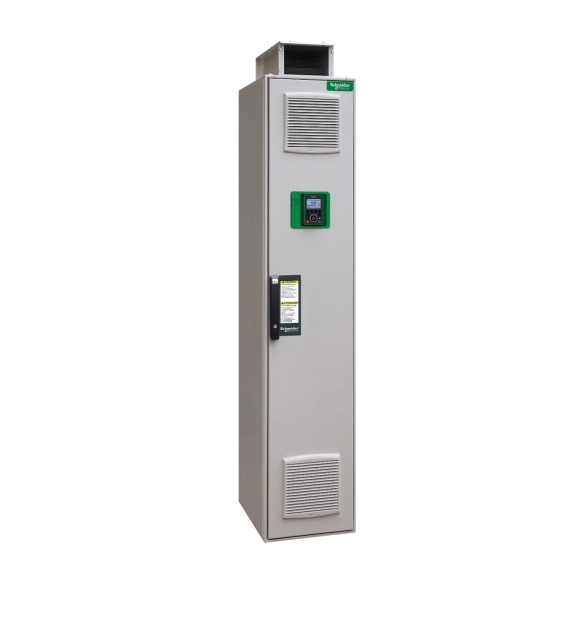

Подово задвижващо устройство - ATV930 - 160kW - 400/440V- без спирачка - IP21

  • Brand
    Schneider Electric
  • Supporting protocol for SERCOS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for KNX
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for Modbus
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for other bus systems
    TRUE
  • Supporting protocol for SUCONET
    FALSE
  • Width
    600
  • With control element
    TRUE
  • With optical interface
    FALSE
  • Number of HW-interfaces parallel
  • Number of interfaces PROFINET
  • Number of HW-interfaces other
  • Number of HW-interfaces serial TTY
  • Supporting protocol for EtherNet/IP
    TRUE
  • Supporting protocol for CAN
    TRUE
  • Number of HW-interfaces RS-422
  • Number of HW-interfaces industrial Ethernet
  • Number of analogue outputs
    2
  • Number of digital inputs
    8
  • Number of HW-interfaces USB
  • Number of HW-interfaces RS-232
  • Number of digital outputs
    1
  • Degree of protection (IP)
    EV006406
  • With PC connection
    FALSE
  • Supporting protocol for BACnet
    FALSE
  • Supporting protocol for PROFIBUS
    TRUE
  • Supporting protocol for DeviceNet
    TRUE
  • Type of converter
    EV009484
  • Max. output frequency
    500
  • Mains frequency
    EV008015
  • Number of phases input
    EV000069
  • Number of phases output
    EV000069
  • Relative symmetric net voltage tolerance
    10
  • Relative symmetric net frequency tolerance
    5
  • Integrated breaking resistance
    FALSE
  • Application in industrial area permitted
    TRUE
  • Application in domestic- and commercial area permitted
    TRUE
  • Mains voltage
    380
  • Supporting protocol for PROFINET IO
    TRUE
  • Number of analogue inputs
    3
  • 4-quadrant operation possible
    TRUE
  • Number of HW-interfaces RS-485
    3
  • Height
    2150
  • Depth
    605
  • Max. output at quadratic load at rated output voltage
    250
  • Max. output at linear load at rated output voltage
    250
  • Nominal output current I2N
    477
  • Max. output voltage
    440

This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 160kW/250HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 132kW/200HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 380Vac to 480Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments, oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.
