СКУ: C124160LS

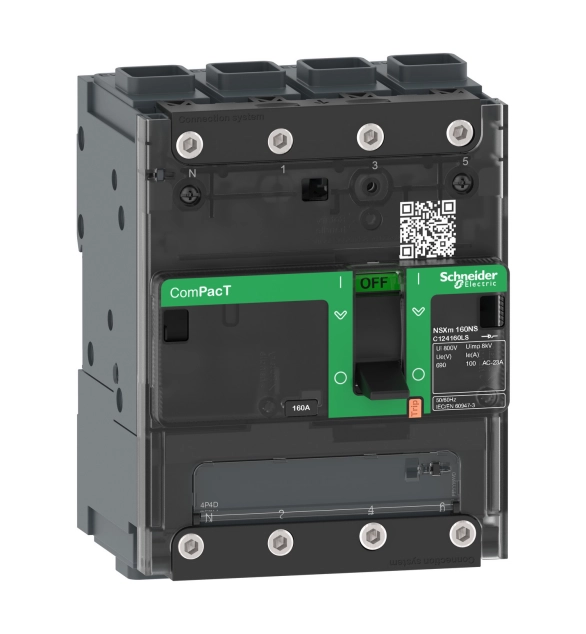

Товаров прекъсвач NSXm 160NA 4P Конектори EverLink
-
Brand
Schneider Electric
-
Number of poles
3
-
Rated permanent current Iu
160
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Short-circuit release function
EV003977
-
With ground fault protection function
FALSE
-
End value adjustment range undelayed short-circuit release
2400
-
Overload release current setting
63
-
Initial value of the undelayed short-circuit release - setting range
2400
This MicroLogic 7.2 E (Energy) is a 4 poles 4d electronic trip unit used on ComPacT NSX 100/160/250 circuit breakers. This 40A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. MicroLogic 7.2 E Vigi trip unit offers an integrated adjustable earth-leakage protection. MicroLogic 7.2 E indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. MicroLogic 7.2 E is equipped with a display module that gives energy measurement and allows fine adjustment settings. An earth leakage pre-alarm can be remotely available by installing the optional SDx module (LV429532). This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
