СКУ: GV4P03N6

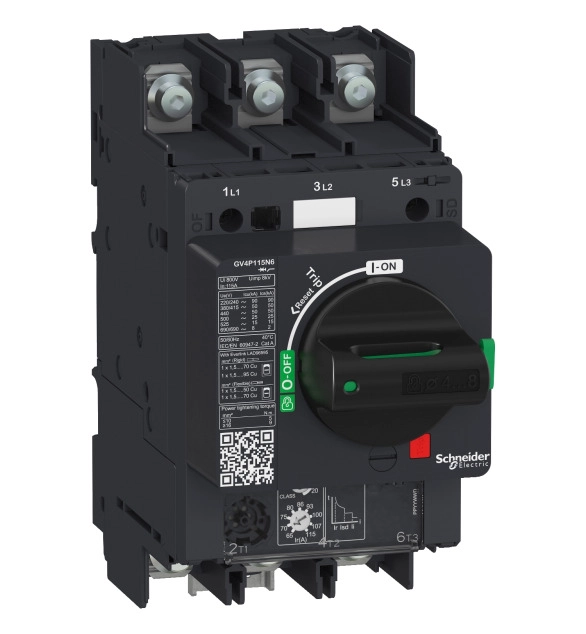

TeSys GV4 - термомагнитна моторна Защита - 3.5A 3P - кабелен накрайник
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Rated operating voltage
690
-
Type of control element
EV000092
-
Degree of protection (IP)
EV006415
-
With integrated under voltage release
FALSE
-
Rated operation power at AC-3, 400 V
1.5
-
With integrated auxiliary switch
FALSE
-
Rated operation power at AC-3, 230 V
0.75
-
Phase failure sensitive
TRUE
-
Device construction
EV009311
-
Rated short-circuit breaking capacity lcu at 400 V, AC
50
-
With thermal protection
TRUE
-
Width
81
-
Depth
165
-
Height
155
-
Switch off technique
EV000101
-
Rated permanent current Iu
3.5
-
Overload release current setting
1.4
-
Adjustment range undelayed short-circuit release
60
TeSys GV motor circuit breaker, 3 poles (3P), 3.5A/690V, for protection of 3-phase motors 0.55-1.5kW@400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 50kA@400V, start-stop control by rotary handle, connection for bars or cables with lugs. Thermal protection adjustable by dials with a setting current Ir in range 1.4-3.5A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
