СКУ: MP2000

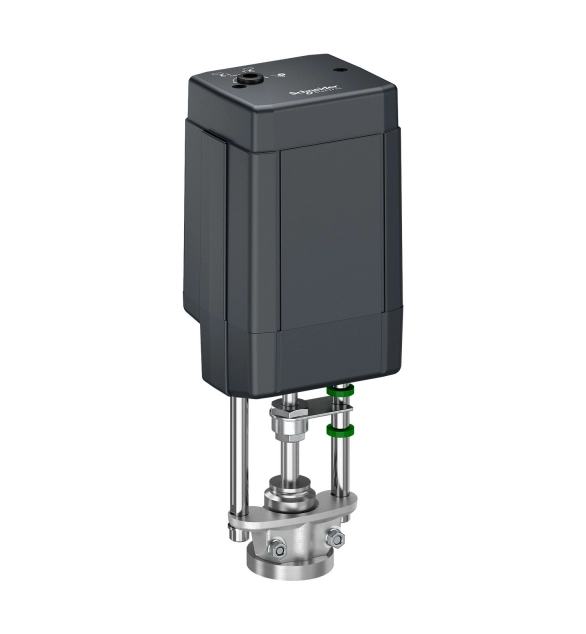

SpaceLogic MP2000 Actuator, Multi-signal control, Non-Spring Return, 24 Vac, 2000 N, IP54
-
Brand
Schneider Electric
-
Explosion-proof
FALSE
-
Material housing
EV000154
-
Degree of protection (IP)
EV006419
-
Potential free switch contact
FALSE
-
Connection to stop valve
EV000154
-
Adjustable position feedback signal
TRUE
-
Control signal
EV000154
-
Supply voltage
EV021410
-
Regulation type splitrange
FALSE
-
Regulation type modulating
TRUE
-
Model
EV020004
-
Return at zero supply voltage
FALSE
-
Regulation type on/off
FALSE
-
Suitable for air accessory
FALSE
-
Position reporting system
EV000494
-
Suitable for valve
TRUE
-
Auxiliary contacts optional
FALSE
-
With safety function
TRUE
-
Type of safety function
EV000154
-
Degree of protection (NEMA)
EV000069
-
Suitable for manual operation
FALSE
-
Deactivated when closed
FALSE
-
Max. electric power input
9
-
Auxiliary contacts
FALSE
-
Height
375
-
End contacts
EV000494
-
Principle of operation safety function
EV000154
-
Width
116
-
With top flange direct mount according to ISO 5211
FALSE
-
Adjusting force
2000
-
Self-adjusting travel length
TRUE
-
Ambient temperature
-40
-
Adjustable operating range
FALSE
-
Automatic travel recognition
TRUE
-
Depth
55
-
Stroke length
40
-
Allowable relative humidity
5
-
With mechanical setting indicator
TRUE
The MP2000 is fine regualtion of large control valves under the demand of the HVAC controller. The actuator can be controlled by either a modulating or 3 point control signal and is used specially with the VP221x SmartX PIBCV valves. With automatic stroke calibration function, and anti-oscillation function. Nominal voltage: 24 Vac/Vdc. Force : 2000 N. Grade of enclosure IP54, NEMA Type 2. Stroke 5 mm.
