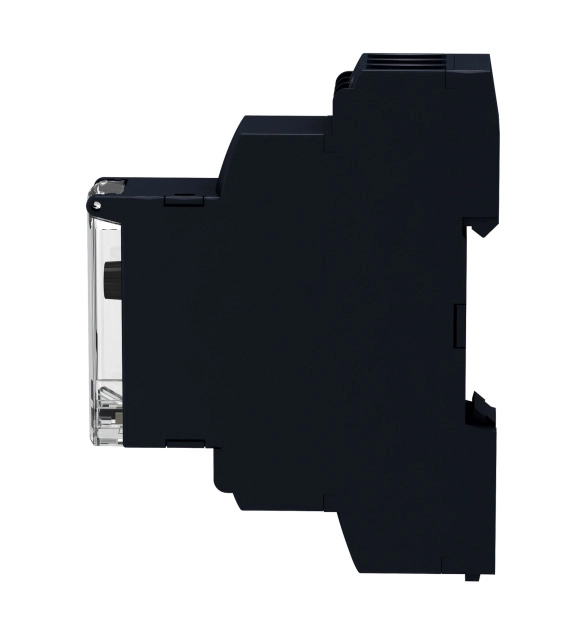

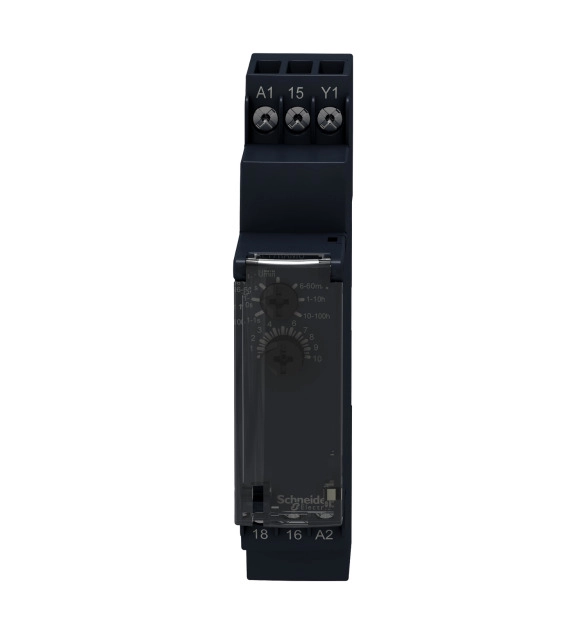

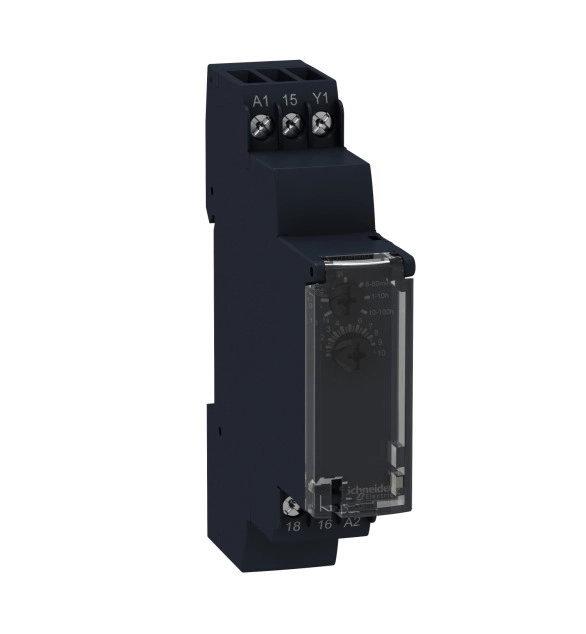

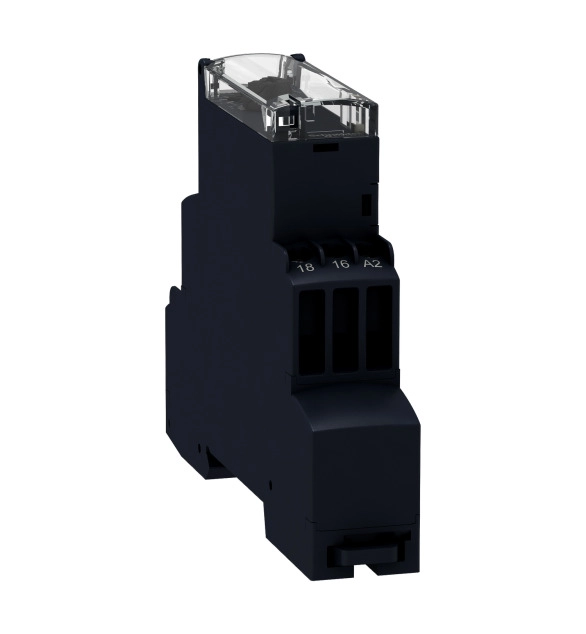

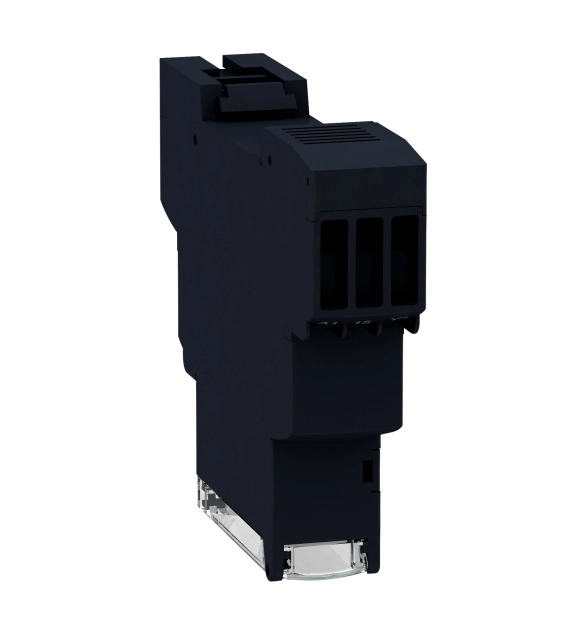

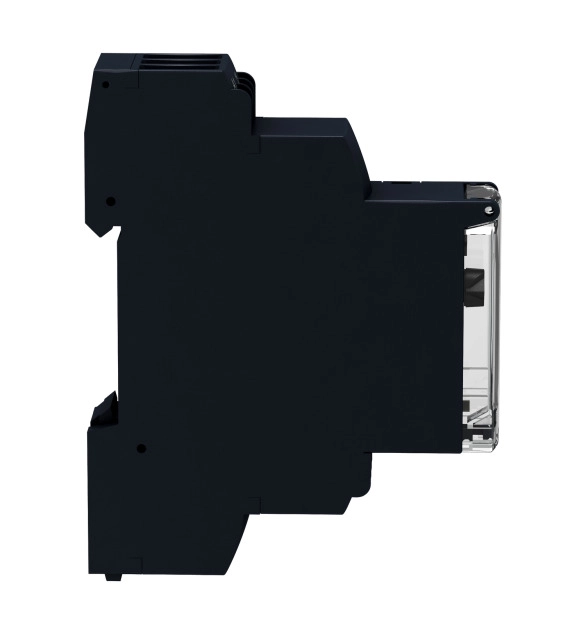

Таймер TIMING ON IMPULSE 24VDC&24...240VAC RE17RBMU

• Brand
  Schneider Electric
• Type of electric connection
  EV000415
• Depth
  72
• Rated control supply voltage Us at AC 50HZ
  24
• Rated control supply voltage Us at AC 60HZ
  24
• Voltage type for actuating
  EV000509
• Rated control supply voltage Us at DC
  24
• Height
  90
• Suitable for front mounting
  TRUE
• Width
  17.5
• With semiconductor output
  FALSE
• Function delay on de-energization
  FALSE
• Pluggable on auxiliary contact block
  FALSE
• Clock function, starting with pause, variable
  FALSE
• Clock function, starting with pulse, variable
  FALSE
• Number of outputs, undelayed, change-over contact
  1
• Function floating contact on de-energization
  FALSE
• Function pulse shaping
  TRUE
• Function delay-on energization
  FALSE
• Suitable for DIN rail (top hat rail) mounting
  TRUE
• Function floating contact on energization
  FALSE
• Outputs, reversible delayed/undelayed
  FALSE
• With plug-in socket
  FALSE
• Function star-delta
  FALSE
• Function flashing, starting with pause, fixed time
  FALSE
• Function flashing, starting with pulse, fixed time
  FALSE
• Remote operation possible
  FALSE
• Suitable as remote control
  FALSE
• Time range
  0.1
• Nominal current
  8
• Number of outputs, delayed, normally open contact
• Number of outputs, delayed, normally closed contact
• Number of outputs, undelayed, normally open contact
• Number of outputs, undelayed, normally closed contact
• Number of outputs, delayed, change-over contact
