СКУ: SXWHHREL10001
10 канален релеен разширителен модул, SpaceLogic RP разширителни модули, 10 релейни изхода, 12 цифрови входа
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Connection for external antenna
FALSE
-
Networkable via radiografic (standard)
FALSE
-
Networkable via radio (optional)
FALSE
-
Smart control
TRUE
-
Suitable for cooling
FALSE
-
Suitable for heating
FALSE
-
With extra contact
FALSE

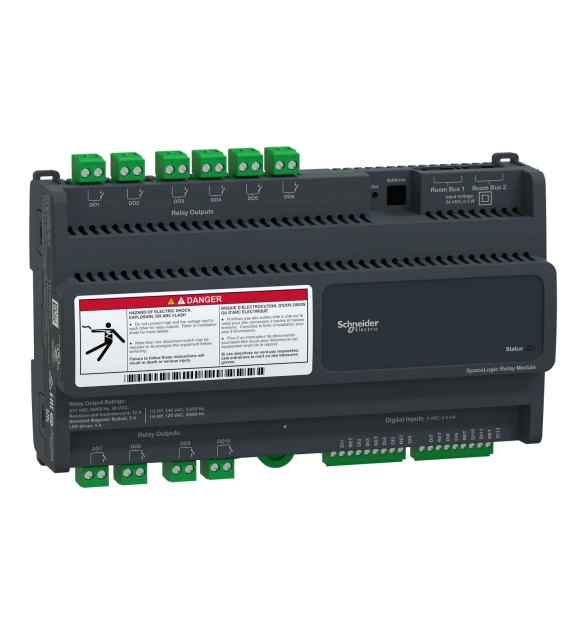

SpaceLogic CRS-HH-REL-10 is a 10 Channel Relay module and is part of the EcoStruxure Connected Room Solution. It provides superior lighting and blind control in both hotels and commercial buildings applications. It is well suited for a wide range of LED lights by high inrush current capability. It supports blind motors operating with high or low voltage. The relay module features 12 digital inputs for more flexibility of different applications with in-wall switches or sensors. Mechanical dimensions are 110 mm in height (4.3 in), 198 mm in width (7.8 in) and 64 mm in depth (2.5 in). The CRS-HH-REL-10 relay module is certified with UL 2043 for plenum applications. The installation of the device can be DIN rail or flat surface. Terminal for relay outputs is 10 x 2-pin screw terminal block and terminal for digital inputs is 2 x 9-pin screw terminal block. Maximum inrush current is maximum 165 A inrush current (<20 ms) per output and maximum 800 A inrush current (<200 μs) per output. No extra power supply is required for the 10 Channel relay module that through RPC’s room bus port.
