СКУ: XB4BP383BG5EX

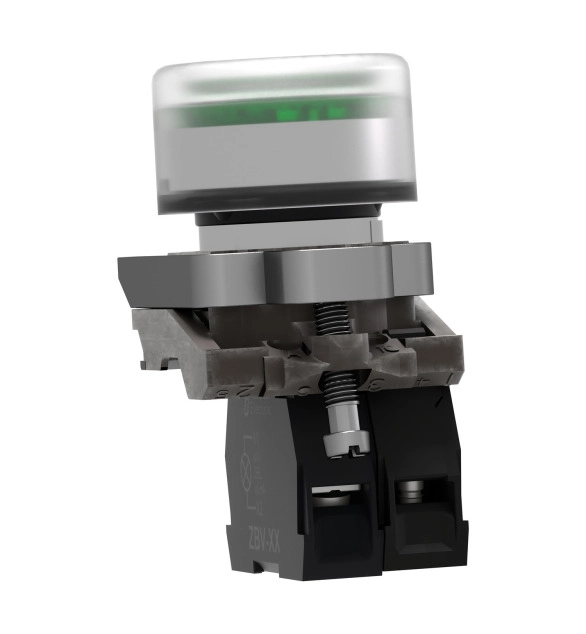

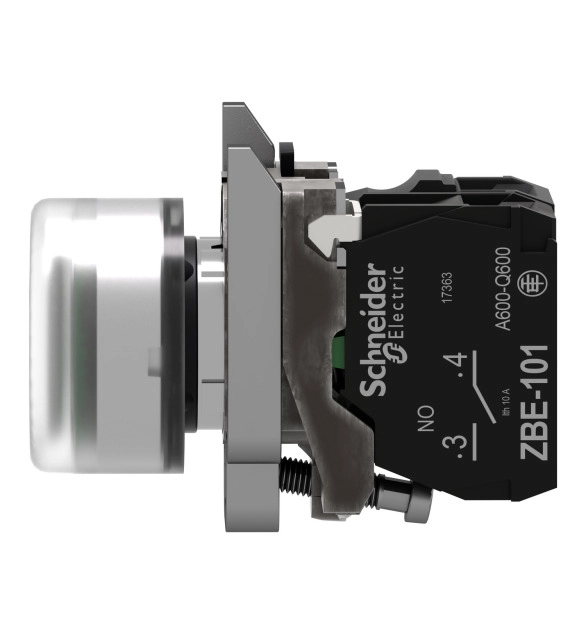

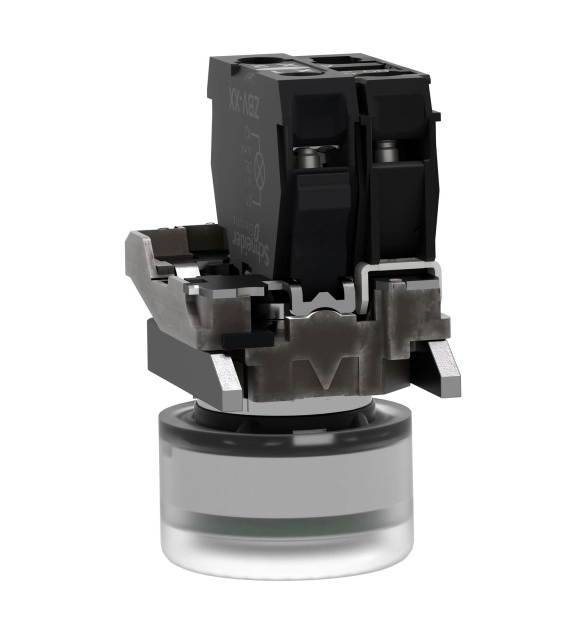

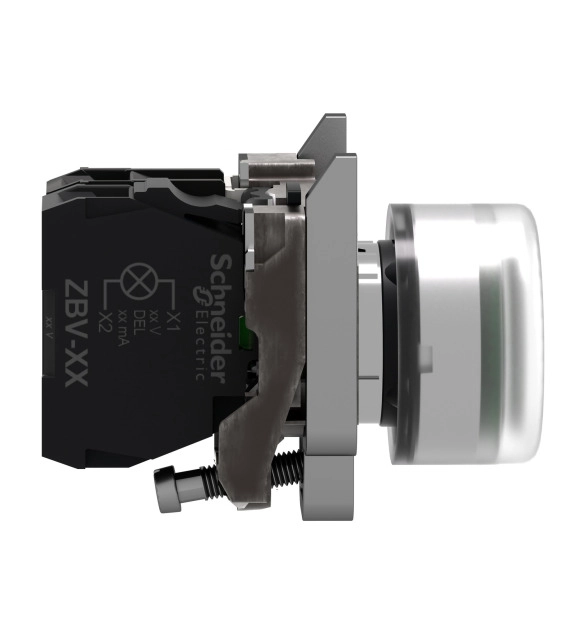

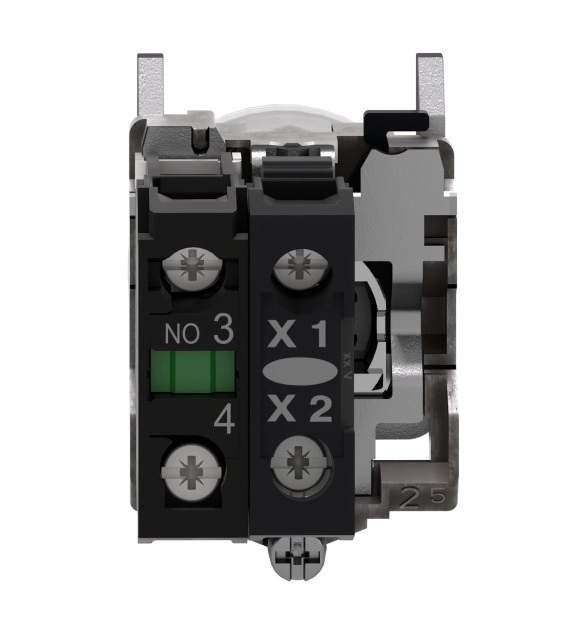

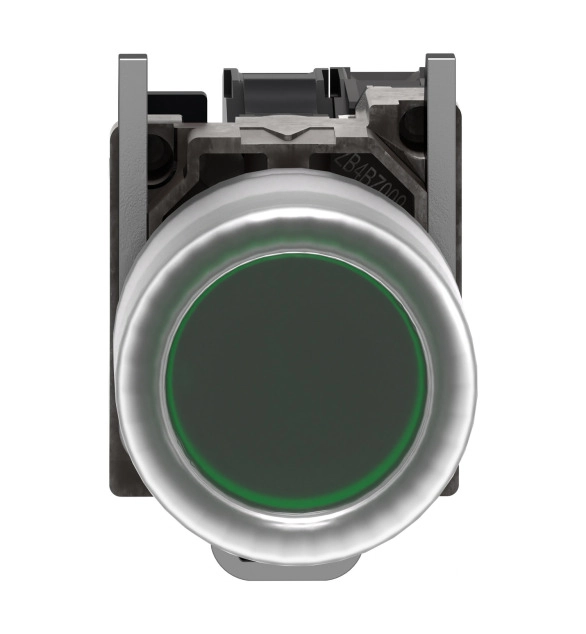

Сглобен светещ бутон, Harmony XB4 - ATEX D, метал, зелен, равен, 22 мм, пружинно връщане, защитно силиконово капаче, 1NO, 24...120V AC/DC
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Type of electric connection
EV000415
-
Degree of protection (IP)
EV006421
-
Colour front ring
EV000291
-
Hole diameter
22.5
-
Construction type lens
EV000167
-
With front ring
TRUE
-
Switching function latching
FALSE
-
Number of command positions
1
-
Spring-return
TRUE
-
Material front ring
EV000914
-
Type of button
EV000880
-
Colour button
EV000235
-
Suitable for illumination
TRUE
-
Supply voltage lamp
24
-
Number of contacts as normally closed contact
-
Number of contacts as change-over contact

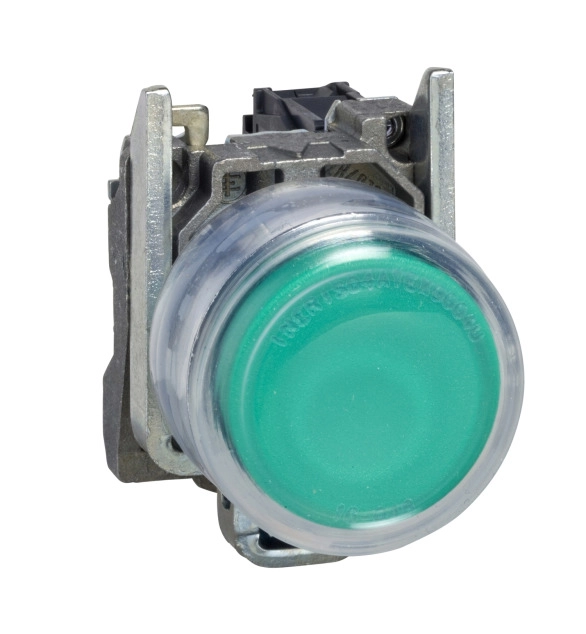

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This green pushbutton has a circular head shape with a booted, clear silicon flush push and is supplied with an integral LED. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22. This illuminated pushbutton with integral LED provides an ergonomic and visual interface for controlling machines. It comes with 1 NO contact with slow-break operation and operates with a spring return mechanism. This pushbutton has a 24V to 120V AC/DC rating. It has a chromium plated metal bezal and has a 22mm diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
