СКУ: RXM4AB1P7PVS
Миниатюрно реле с основа, предварително сглобено, Harmony, 6A, 4CO, заключващ се тест бутон, отделно гнездо за клеми, 230V AC
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Voltage type for actuating
EV000460
-
Number of contacts as change-over contact
4
-
With LED indication
FALSE
-
With detachable clamps
TRUE
-
Drive, switching attitude
EV005821
-
Drive, polarization
EV005820
-
Material of contact insert
EV000154
-
Material of contact surface
EV000154
-
Material contact
EV000154
-
Type of electric connection
EV000414
-
With forced-guided contacts
FALSE
-
Type of switch contact
EV000154
-
Width
27
-
Depth
80
-
Nominal current
6
-
Complete with socket
TRUE
-
Height
82
-
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
Rated control supply voltage Us at AC 50HZ
-
Rated control supply voltage Us at AC 60HZ

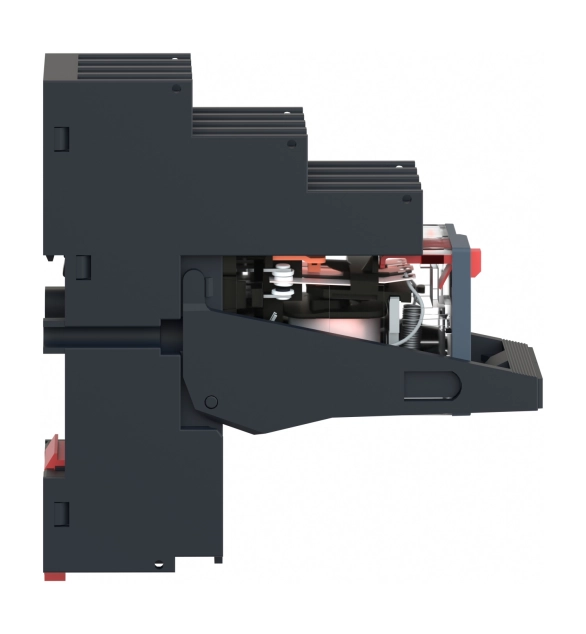

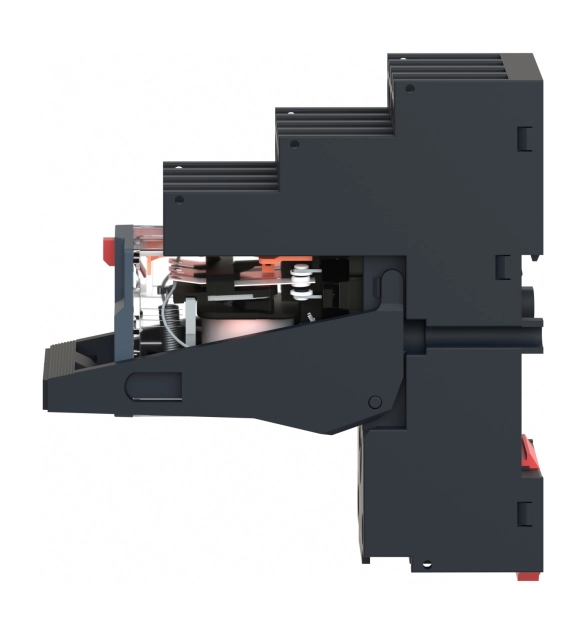

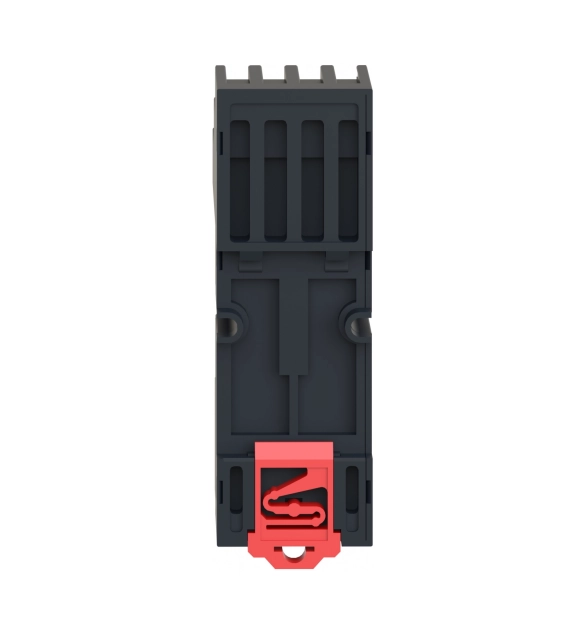

This miniature Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and legend. This is a 6A, 230Vac, 4 CO miniature mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. It also offers one-step lockable test button. The miniature relay socket connection is by screw connector type. This pre-assembled relay weighs 0.113Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. This product conforms to international standard and certifications like IEC, UL, EAC, CSA, Lloyd's, RoHS and REACH. It is sold in lots of 30. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A) or 4 CO (6A) contacts.
