СКУ: XB5AS8446
Бутон за аварийно спиране, Harmony XB5, пластмаса, червен тип гъба 40 мм, 22 мм, спусък/заключване завъртане за освобождаване, 1NC с наблюдение
-
Brand
Schneider Electric
-
Number of contacts as normally open contact
1
-
Number of contacts as normally closed contact
1
-
Connection type auxiliary circuit
EV000415
-
Hole diameter
22.5
-
Degree of protection (NEMA)
EV000154
-
With lighting
FALSE
-
Diameter cap
40
-
Unlocking method
EV003975
-
Degree of protection (IP)
EV006422
-
Mounting method
EV000134

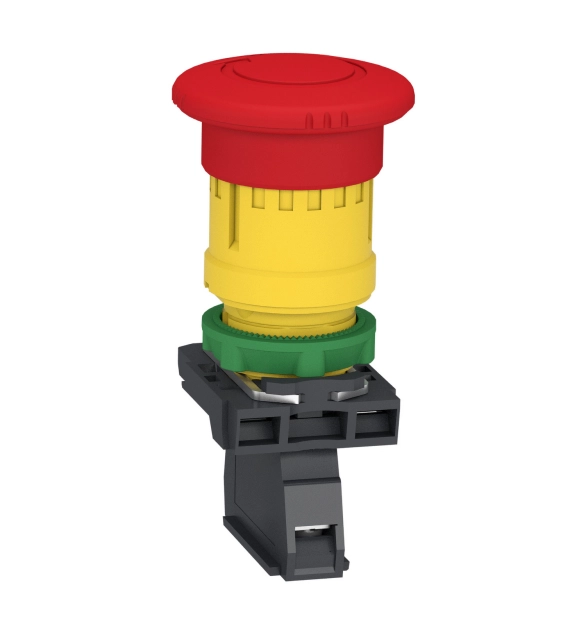

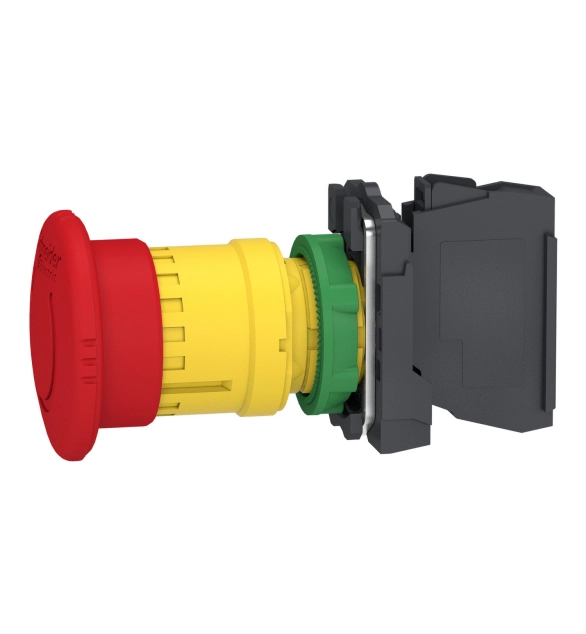

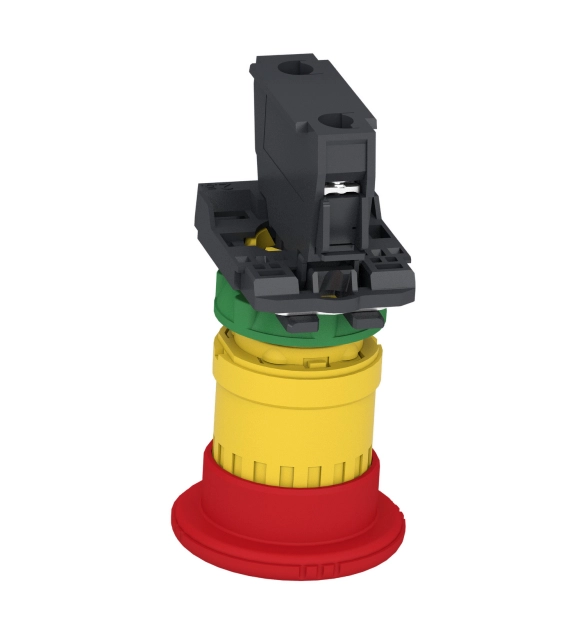

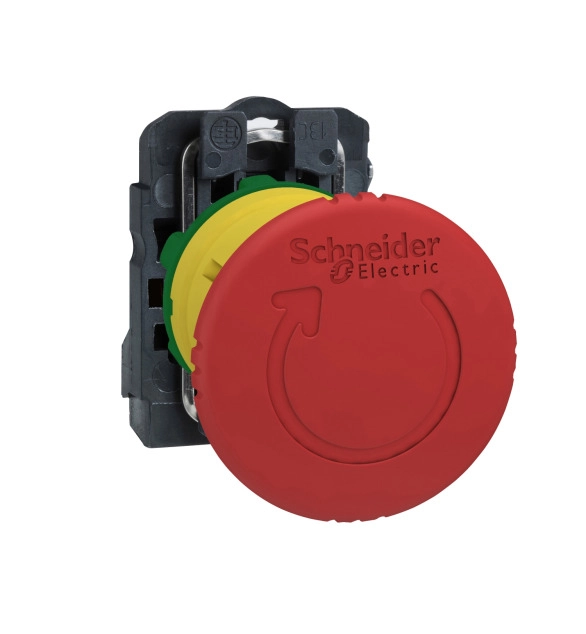

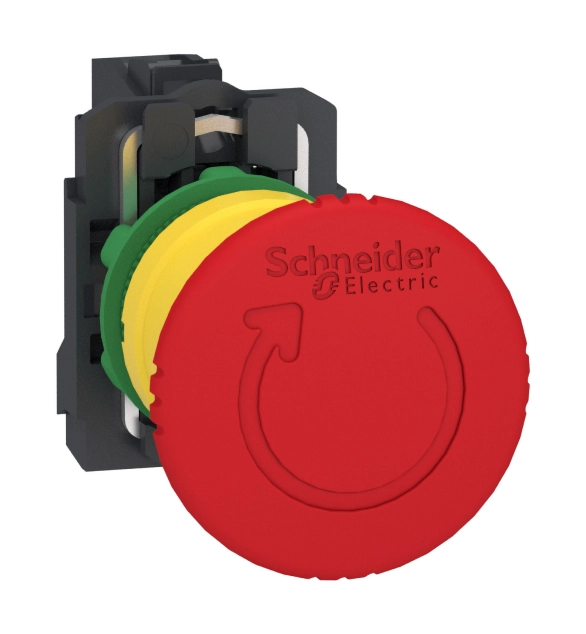

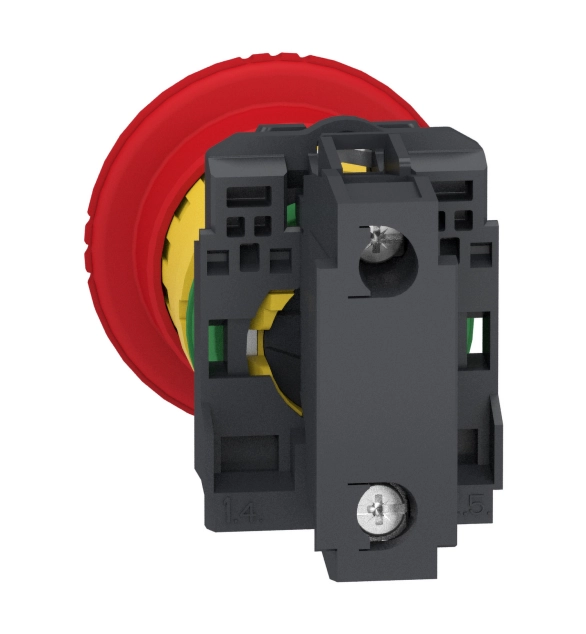

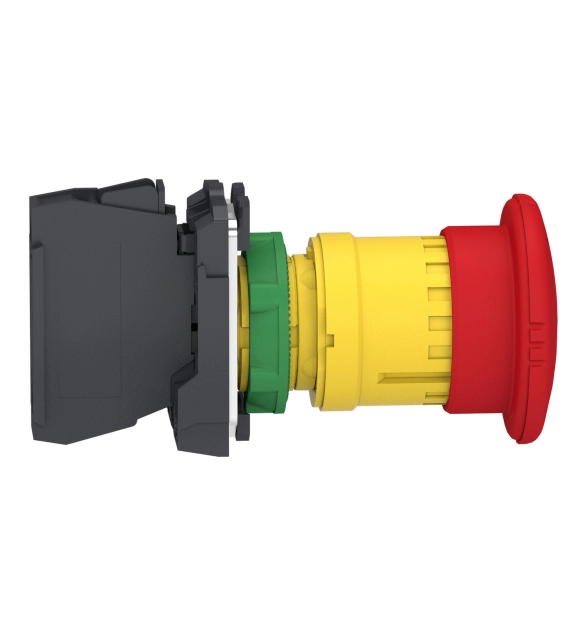

This product is part of the Harmony XB5 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This red Emergency stop pushbutton comes with a mushroom head. It operates with a turn to release mechanism. This mushroom headed pushbutton provides an ergonomic interface for controlling/stopping machines. It comes with 1 NC monitoring contact with slow break operation. It is clearly distinguishable visually at a distance due to a clear color and a prominent mushroom shape. It has a plastic bezal and has a 40mm diameter mushroom head. It is an IP66, IP67, IP69 and IP69K rated product and comes with CE, CCC, UKCA, EAC, UL and CSA certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB5 range offers innovative features for simple and efficient use.
