изключвателно устройство MicroLogic Vigi 4.3, ComPacT NSX400/630, 4 полюса, електронна основна защита и защита срещу утечка на земя, 400A rating | Spark & Co
  • 3D
|

СКУ: C4044V400

изключвателно устройство MicroLogic Vigi 4.3, ComPacT NSX400/630, 4 полюса, електронна основна защита и защита срещу утечка на земя, 400A rating

  • Brand
    Schneider Electric
  • Number of poles
    4
  • Rated permanent current Iu
    400
  • Type of motor protection
    EV014005
  • Voltage type for actuating
    EV009206
  • Short-circuit release function
    EV003977
  • With ground fault protection function
    FALSE
  • Initial value of the undelayed short-circuit release - setting range
    4800
  • End value adjustment range undelayed short-circuit release
    4800
  • Overload release current setting
    160

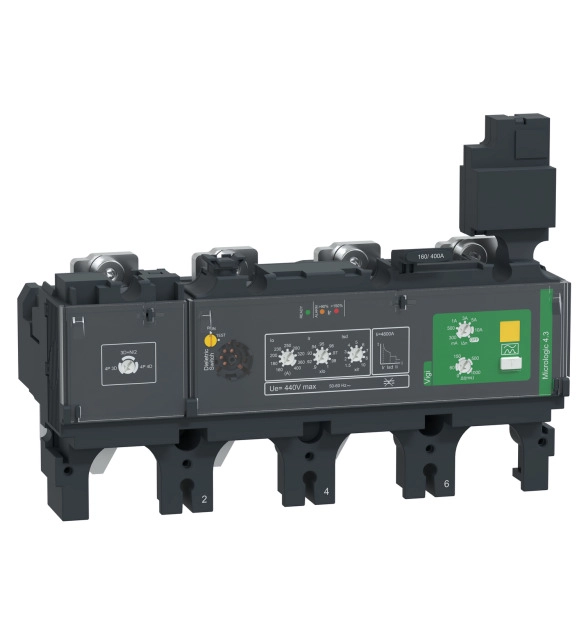

This MicroLogic 4.3 is a 4 poles 4d electronic trip unit used on ComPacT NSX 400/630 circuit breakers. This 400A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 4.3 Vigi trip unit offers an integrated adjustable earth-leakage protection. MicroLogic 4.3 indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. An earth leakage pre-alarm can be remotely available by installing the optional SDx module (LV429532). This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
