СКУ: A9L20500

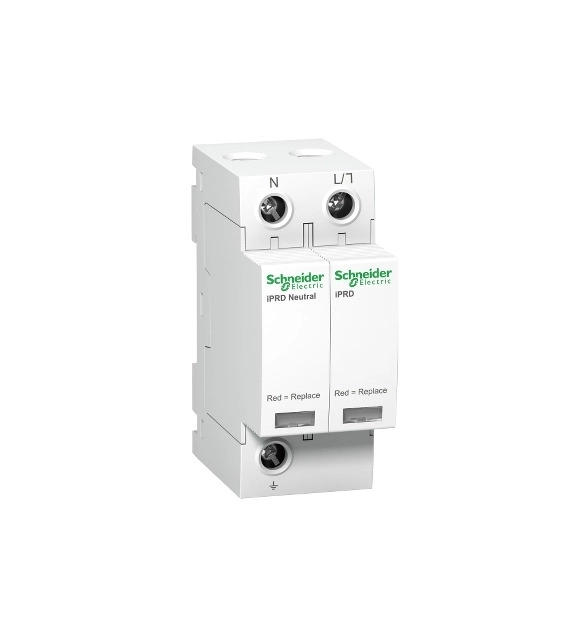

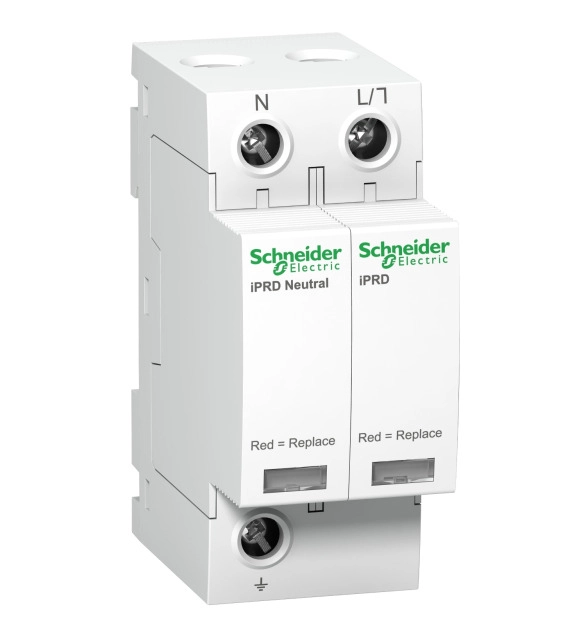

SCHNEIDER ELECTRIC Мodular surge arrester iPRD20 - 1P+N, 350V

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Leakage-current free
    FALSE
  • System configuration DC
    FALSE
  • System configuration TN
    FALSE
  • System configuration IT
    FALSE
  • Voltage protection level
    1.5
  • Signalling at the device
    EV000428
  • Nominal voltage AC
    400
  • System configuration TN-C-S
    FALSE
  • Mounting method
    EV005503
  • System configuration other
    FALSE
  • With remote signalling contact
    TRUE
  • Integrated backup fuse
    FALSE
  • Category type 2
    TRUE
  • Max. continuous voltage AC
    350
  • Short-circuit breaking capacity (Isccr)
    25
  • System configuration TN-C
    FALSE
  • System configuration TT
    TRUE
  • Construction size
    EV000154
  • Voltage protection level L-N
    1.5
  • System configuration TN-S
    TRUE
  • Voltage protection level N-PE
    1.5
  • Max. conductor cross section flexible (fine-strand)
    25
  • Integrated short-circuit protection
    TRUE
  • Number of conductors (without earthing)
    4
  • Nominal discharge surge current (8/20)
    5
  • Max. discharge surge current (8/20)
    20
  • Max. conductor cross section solid (solid, stranded)
    25

This Acti9 STI isolatable fuse-carriers is a low voltage fuse-disconnector. It is used for tertiary and industrial applications requiring a high breaking capacity. It has 3P+N pole, up to 25A rated current, and gG or aM fuse curve with a fuse cartridge type of 10.3mm x 38mm. it can be mounted on DIN rail for modular installation. The general purpose fuse (gG fuse) provides overload and short-circuit protection. The aM fuse for motor application provides short-circuit protection (protection of loads with a high peak current). it has an IP20 degree of protection on its terminals, becoming IP40 once in modular enclosure. A clip-on marker is visible on front face or on downstream terminal to identify fuse presence. An optional 230V neon indicator light indicates fuse blowing (off in normal operation and lit red after fuse blowing). The device is provided with a captive fuse-carrier and an additional housing for a spare fuse. Its toggle can also be padlocked.
