СКУ: C1032M050
Изключвателно устройство NSX100 AC 3P3D 50A 2.2M MicroLogic
-
Brand
Schneider Electric
-
Number of poles
3
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Short-circuit release function
EV003977
-
With ground fault protection function
FALSE
-
Rated permanent current Iu
50
-
Initial value of the undelayed short-circuit release - setting range
750
-
End value adjustment range undelayed short-circuit release
750
-
Overload release current setting
25

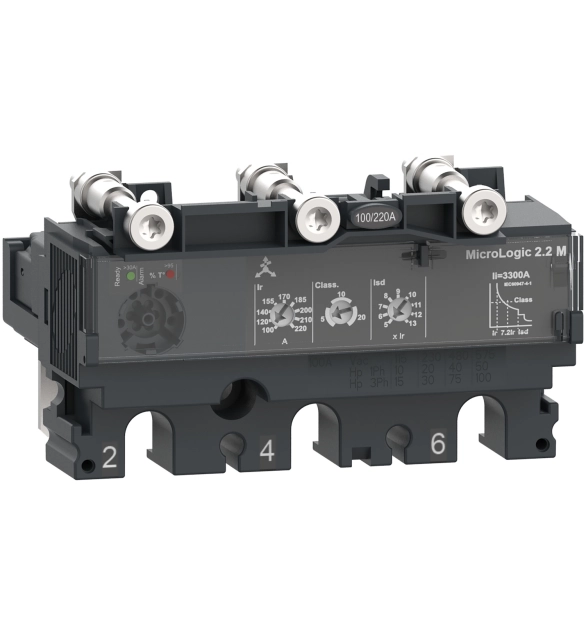

This MicroLogic 2.2 M is a 3 poles 3d electronic trip unit used on ComPacT NSX 100/160/250 circuit breakers. This 50A rating electronic trip unit is an optimum choice for motor protection applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 2.2 M indicates when the thermal image of the rotor and stator is greater than 95% of the permissible temperature rise with a red Alarm LED. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
