СКУ: 13979

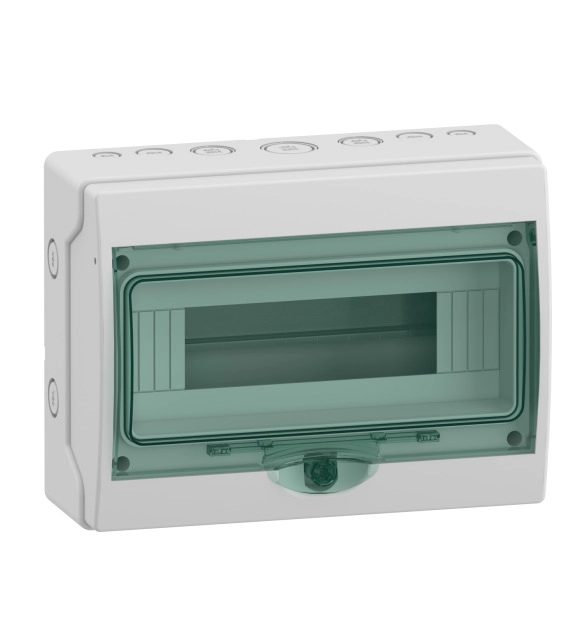

SCHNEIDER ELECTRIC Mini Kaedra, for modular devices, 1x12 modules, 267x200mm, 7 pre-cutouts
-
Brand
Schneider Electric
-
Material housing
EV000139
-
Number of rows
1
-
DIN-rail
TRUE
-
Mounting method
EV000384
-
With lock
FALSE
-
EMC-version
FALSE
-
Earthing terminal block
FALSE
-
Neutral terminal block
FALSE
-
Height
200
-
Type of cover
EV004216
-
Extension possible
TRUE
-
RAL-number
7035
-
Degree of protection (IP)
EV006421
-
Transparent cover/door
TRUE
-
Type of closure
EV000154
-
Cover model
EV000116
-
Signal passing door
TRUE
-
Colour
EV000270
-
Width in number of modular spacings
12
-
With mounting plate
TRUE
-
Internal depth
56
-
Depth
112
-
Width
267
This Mureva Enclosure weatherproof enclosure is a surface mounted mini enclosure for modular device. It is composed of 1 row of 12 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor and outdoor waterproof installation. The IP degree of protection is IP65. It is provided with a transparent green door. The colour of the enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 7 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail. There are no terminal block and no terminal block support. A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 19W. The In rated current is up to 63A. This product complies with the IEC 60670-1 and -24 standards. The dimensions are (W) 267mm x (H) 200mm x (D) 112mm. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is ultraviolet resistant. The IK degree of protection is IK09. The operating temperature is -25°C to 60°C.
