SCHNEIDER ELECTRIC Circuit breaker ComPacT NSX160N 1P TMD 125A (HS code: 85362090, COO: PL, 1.3kg) | Spark & Co
  • 3D
|

СКУ: C16N1TM125

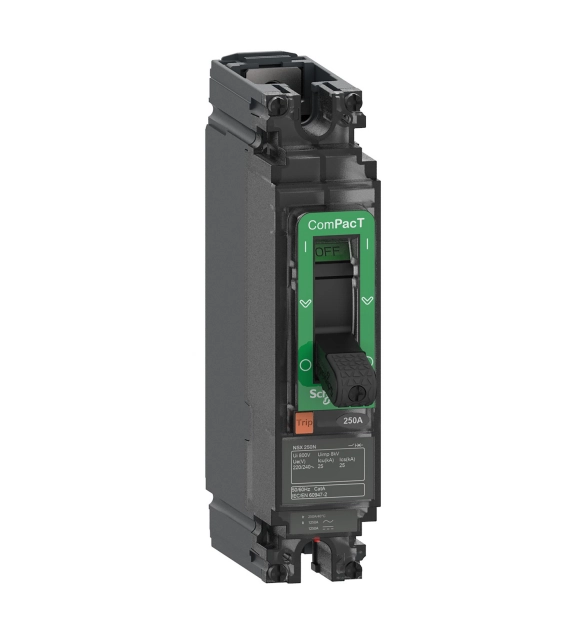

SCHNEIDER ELECTRIC Circuit breaker ComPacT NSX160N 1P TMD 125A (HS code: 85362090, COO: PL, 1.3kg)

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Motor drive optional
    FALSE
  • Rated permanent current Iu
    125
  • Number of poles
    1
  • Degree of protection (IP)
    EV006415
  • Type of control element
    EV000421
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • With integrated under voltage release
    FALSE
  • DIN rail (top hat rail) mounting optional
    TRUE
  • Complete device with protection unit
    TRUE
  • Rated voltage
    277
  • Overload release current setting
    125
  • Adjustment range undelayed short-circuit release
    1200
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Number of auxiliary contacts as change-over contact

ComPacT NSX 160N is a complete 1 poles fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 25kA rms at 240VAC 50/60Hz. The operational voltage is 277VAC 50/60Hz. This product embeds a 125A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an fixed thermal overload protection and a fixed magnetic protection. The dimension is 161mm x 35mm x 86mm (H x W x D). It is compliant with international standards (EN/IEC 60947), CCC, EAC and marine specifications.
