СКУ: LC1D098F7
Контактор TeSys D - 4P(2 NO + 2 NC) -AC-1-<= 440 V 20 A - 110 V AC, бобина
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Voltage type for actuating
EV000460
-
Rated control supply voltage Us at AC 50HZ
110
-
Rated control supply voltage Us at AC 60HZ
110
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Modular version
FALSE
-
Rated operation current Ie at AC-1, 400 V
25
-
Number of normally closed contacts as main contact
2
-
Number of normally open contacts as main contact
2

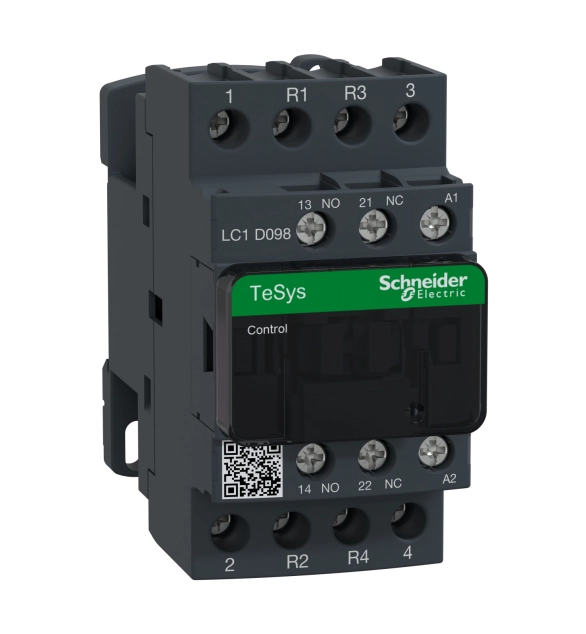

TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 20A/690V AC-1. It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
