СКУ: ATV12HU15M2

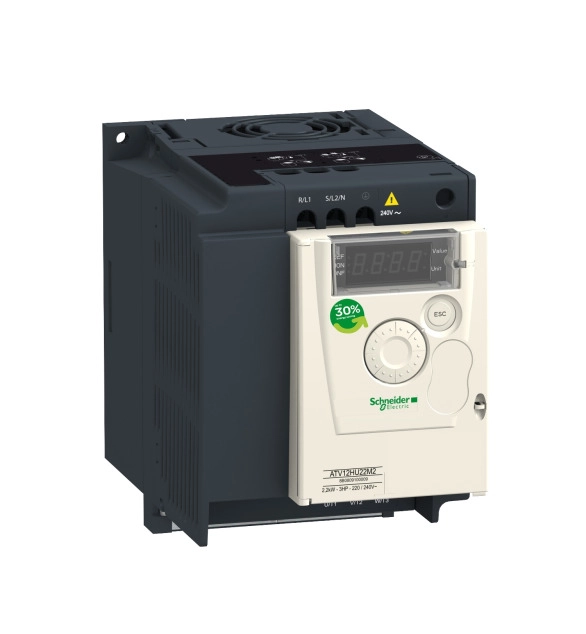

SCHNEIDER ELECTRIC Variable speed drive, Altivar 12, 1.5kW, 2hp, 200-240V, 1 phase, with heat sink

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Supporting protocol for SERCOS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for KNX
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • Supporting protocol for other bus systems
    FALSE
  • Width
    72
  • With control element
    TRUE
  • With optical interface
    FALSE
  • Number of HW-interfaces parallel
  • Number of interfaces PROFINET
  • Number of HW-interfaces serial TTY
  • Supporting protocol for Modbus
    TRUE
  • Number of HW-interfaces RS-422
  • Number of HW-interfaces RS-485
    1
  • Number of HW-interfaces industrial Ethernet
  • Number of analogue outputs
    1
  • Number of HW-interfaces USB
  • Number of HW-interfaces RS-232
  • Number of digital outputs
    1
  • Number of analogue inputs
    1
  • Number of digital inputs
    4
  • Supporting protocol for BACnet
    FALSE
  • Type of converter
    EV009484
  • Mains frequency
    EV008015
  • Number of phases output
    EV000069
  • Relative symmetric net voltage tolerance
    10
  • Relative symmetric net frequency tolerance
    5
  • Integrated breaking resistance
    FALSE
  • Application in industrial area permitted
    TRUE
  • 4-quadrant operation possible
    FALSE
  • Number of HW-interfaces other
    8
  • Mains voltage
    100
  • Max. output frequency
    400
  • Height
    143
  • With PC connection
    TRUE
  • Number of phases input
    EV000599
  • Application in domestic- and commercial area permitted
    TRUE
  • Max. output voltage
    230
  • Depth
    102.2
  • Max. output at quadratic load at rated output voltage
    0.18
  • Max. output at linear load at rated output voltage
    0.18
  • Nominal output current I2N
    1.4

This Altivar 12 variable speed drive can feed single phase asynchronous motors. It works at a rated power up to 0.55kW / 0.75hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. Transient overtorque function prevents stoppages by unjamming the machine with extra torque, when needed, this reduces downtime and maintenance costs. It features underload and overload detection, this contribute to protect your installation. The Altivar 12 drive integrates as standard the Modbus communication protocol, which can be accessed via the RJ45 connector located on the underside of the drive. It is designed for simple industry and commercial machines and appliances, such as conveyors, pumps, extractors, access barriers and treadmills. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.
