СКУ: CAD50ED

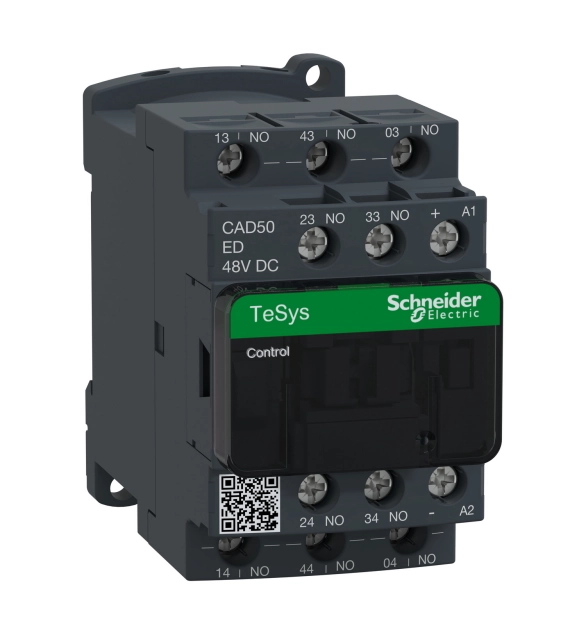

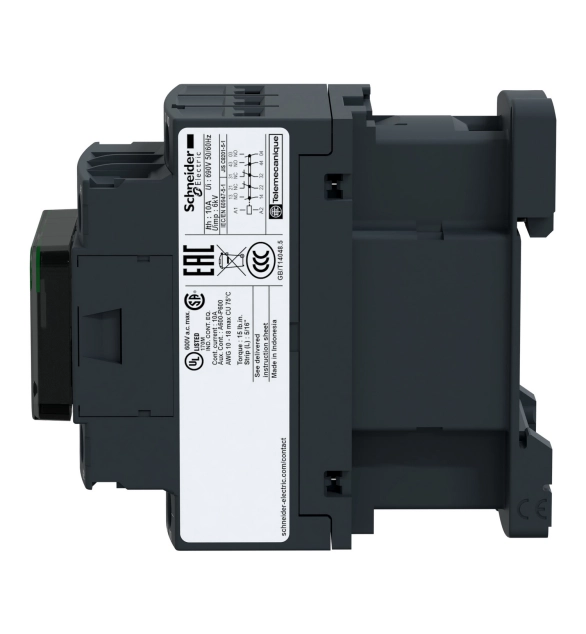

Контролно реле TeSys Deca - 5 NO - <= 690 V - 48 V DC стандартна бобина

  • Brand
    Schneider Electric
  • Connection type auxiliary circuit
    EV000415
  • Voltage type for actuating
    EV000461
  • Rated control supply voltage Us at DC
    48
  • With LED indication
    FALSE
  • Suitable for manual operation
    FALSE
  • Interface
    FALSE
  • Mounting method
    EV010333
  • Rated operation current Ie, 400 V
    10
  • Number of auxiliary contacts as normally open contact
    5
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as change-over contact
  • Number of auxiliary contacts as normally closed contact, delayed switching
  • Number of auxiliary contacts as normally open contact, leading

TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 48V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
