СКУ: NSYCR100WU1C

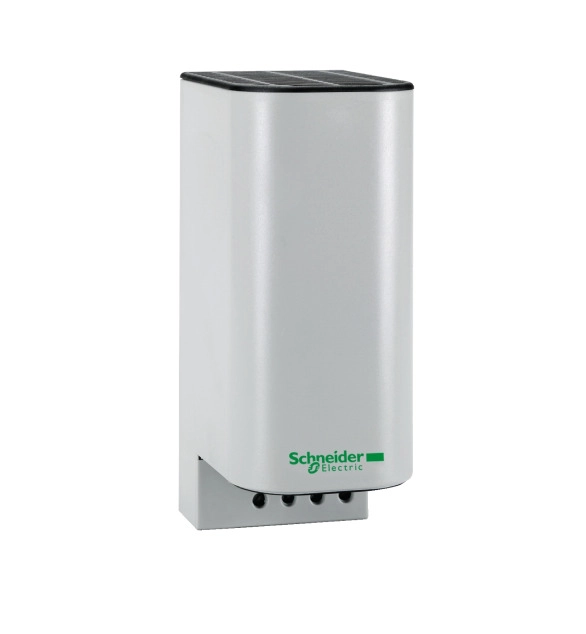

Резистивен изолиран нагревател 100W 12-24V
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006420
-
Material
EV000072
-
Suitable for enclosure building depth
800
-
Mounting method
EV000717
-
For max. number of fans
1
-
Height
430
-
With built-in filter
TRUE
-
Width
373
-
Surface finishing
EV000113
-
Suitable for enclosure building width
291
Resistance heater 100W, 110,250 V AC 50/60 Hz for ClimaSys CR Thermal Management System The product has extruded aluminium body and plastic cover Fixing by clips in vertical operating position The product width is 60mm, height is 150mm and depth is 90mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit Conforms with UL and VDE certification Ingress protection rating IP20 Ambient air temperature for operation -40-70 °C Conforms with UL and VDE certification Conforms class II electrical insulation class
