СКУ: C103MA050
Изключвателно устройство NSX100 AC 3P3D 50A MA
-
Brand
Schneider Electric
-
Number of poles
3
-
Rated permanent current Iu
25
-
Voltage type for actuating
EV009206
-
With ground fault protection function
FALSE
-
Short-circuit release function
EV003978
-
Type of motor protection
EV000154
-
Initial value of the undelayed short-circuit release - setting range
150
-
End value adjustment range undelayed short-circuit release
350

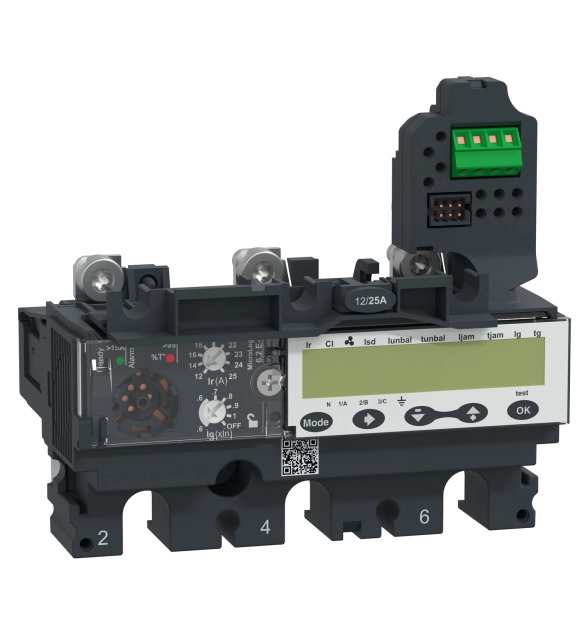

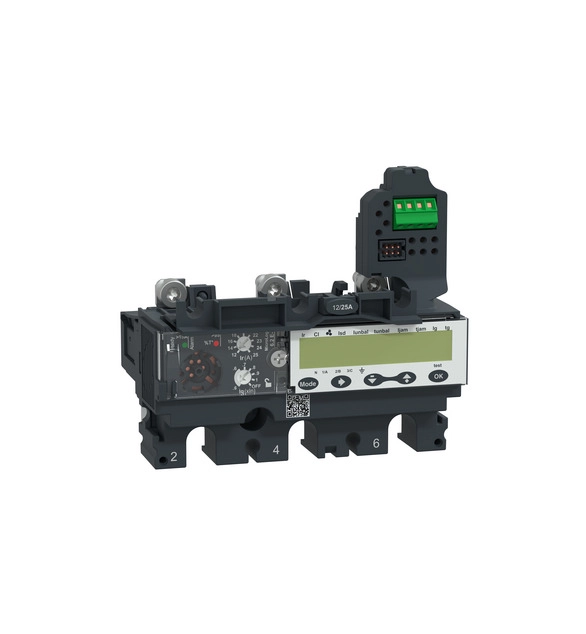

This MicroLogic 4.2 AL is a 3 poles 3d electronic trip unit used on ComPacT NSX 160/250 circuit breakers. This 160A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 4.2 AL provides an earth leakage alarm without trip, that is available on the terminal block. MicroLogic 4.2 AL indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
