СКУ: NSYCR20WU1C
Резистивен изолиран нагревател 20W 12-24V
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Degree of protection (NEMA)
EV000599
-
Width
38
-
Voltage type
EV000461
-
Depth
75
-
Rated power
20
-
With room temperature controller
FALSE
-
With fan
FALSE
-
Operating voltage at DC
12
-
Continuous heating power at 10 °C
20
-
Height
98

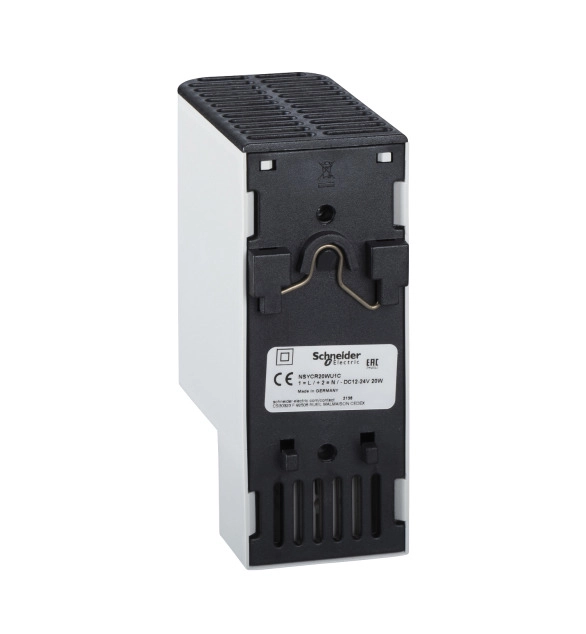

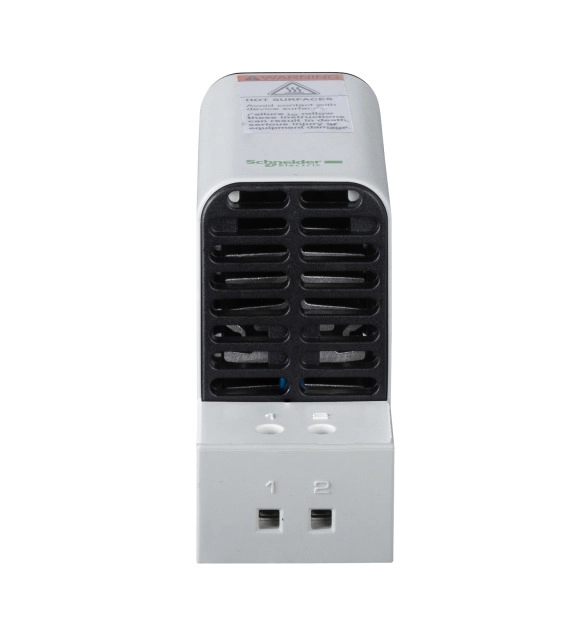

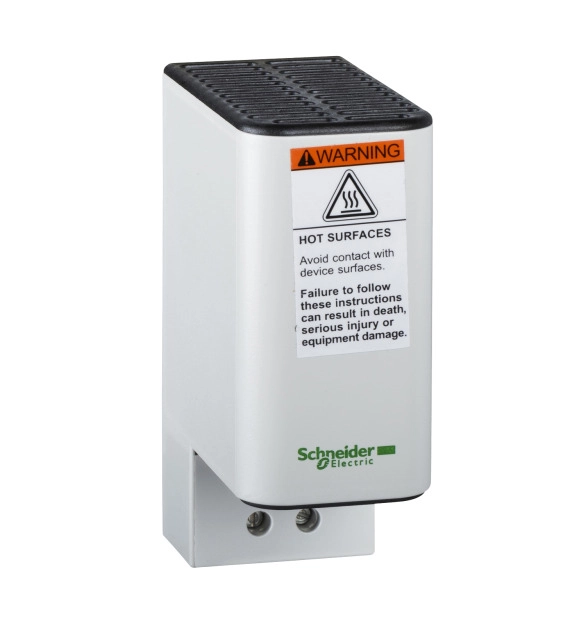

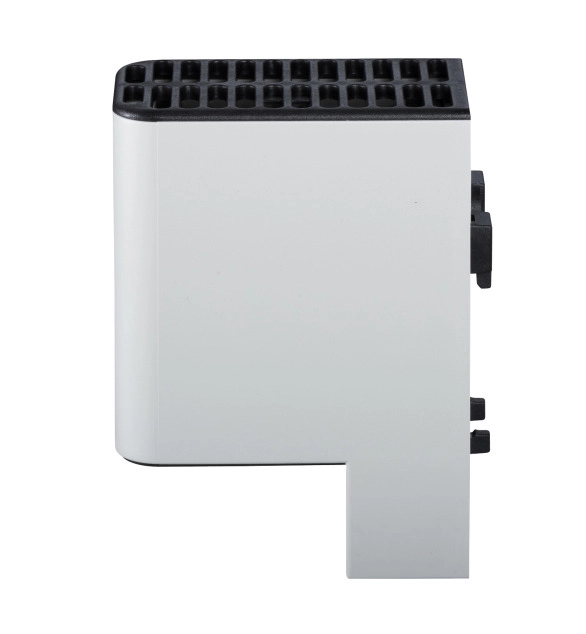

Resistance heater 20W, 12,24 V DC for ClimaSys CR Thermal Management System The product has extruded aluminium body and plastic cover Fixing by clips in vertical operating position The product width is 38mm, height is 98mm and depth is 75mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit Conforms with VDE and UL certification Ingress protection rating IP20 Ambient air temperature for operation -40-70 °C Conforms with VDE and UL certification Conforms class II electrical insulation class
