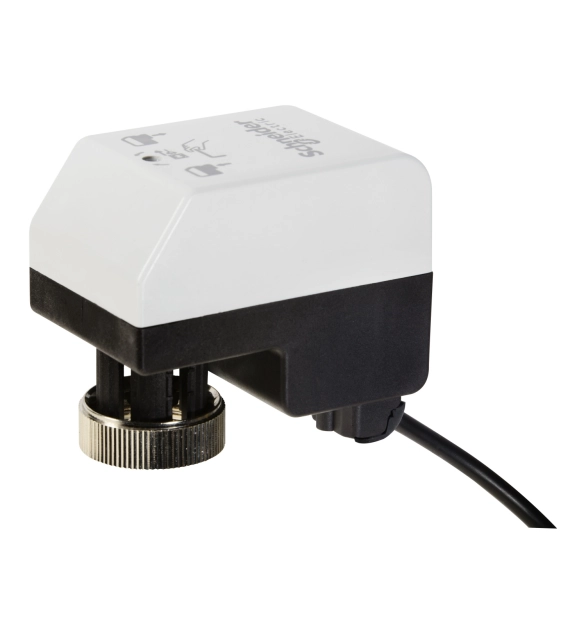

MZ20A Electric Zone Valve Actuator, Modulating, 0-10 Vdc, Non-Spring Return, 24 Vac, 200 N, IP43 | Spark & Co
  • 3D
|

СКУ: 8455052000

MZ20A Electric Zone Valve Actuator, Modulating, 0-10 Vdc, Non-Spring Return, 24 Vac, 200 N, IP43

  • Brand
    Schneider Electric
  • Material housing
    EV000139
  • Explosion-proof
    FALSE
  • Height
    81
  • Suitable for manual operation
    TRUE
  • Potential free switch contact
    FALSE
  • Adjustable position feedback signal
    TRUE
  • Supply voltage
    EV021410
  • Regulation type splitrange
    FALSE
  • Regulation type modulating
    TRUE
  • Model
    EV020004
  • Return at zero supply voltage
    FALSE
  • Position reporting system
    EV000494
  • Suitable for valve
    TRUE
  • Auxiliary contacts optional
    FALSE
  • With safety function
    TRUE
  • Adjustable operating range
    TRUE
  • Type of safety function
    EV000154
  • With mechanical setting indicator
    FALSE
  • Degree of protection (NEMA)
    EV000069
  • Deactivated when closed
    FALSE
  • Auxiliary contacts
    FALSE
  • Principle of operation safety function
    EV000154
  • With top flange direct mount according to ISO 5211
    FALSE
  • Self-adjusting travel length
    TRUE
  • Automatic travel recognition
    TRUE
  • Allowable relative humidity
    5
  • Degree of protection (IP)
    EV006610
  • Transmission
    EV006116
  • Regulation type on/off
    TRUE
  • Suitable for air accessory
    TRUE
  • Control signal
    EV007983
  • Ambient temperature
    -5
  • Length of connection cable
    1.5
  • Connection to stop valve
    EV022025
  • End contacts
    EV000599
  • Energy consumption in operation
    1
  • Max. electric power input
    1.2
  • Stroke length
    6.5
  • Width
    92
  • Operating time
    100
  • Adjusting force
    200
  • Depth
    76.5

The MZ20 is a compact precise actuator for the VZ219, VZ319 and VZ419 valves. The long stroke is an electro-mechanical zone actuator. The actuator provides precise valve position and flow for good hydronic control. Reliable long term operation is provideed by the optimal design without feedback potentiometer or end switches. Supply voltage, 24 Vac and Force, 200 N. Control voltage: …1 V. IP 43 for vertical mounting. Working temperature: -5 to 55 °C. Connection cable: 5.5 m. 6 m 24 V pluggable cabe pack, 1 pieces.
