СКУ: MIP12212S

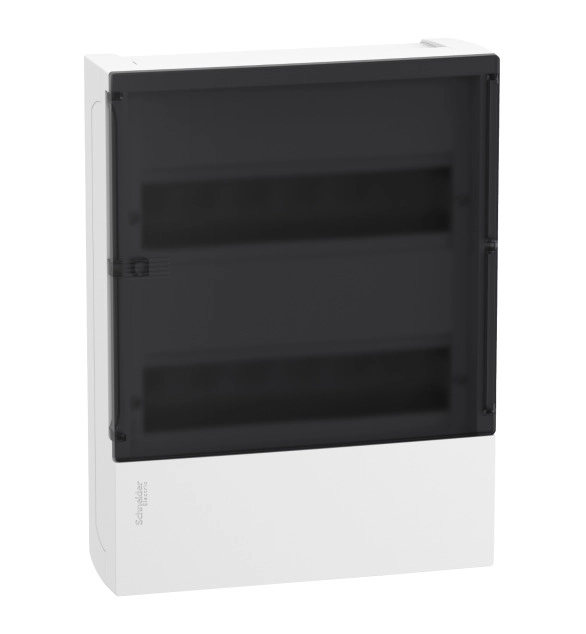

Модулно табло Mini Pragma 2Р 12M, открит монтаж, полупрозрачна врата
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
Extension possible
FALSE
-
RAL-number
9003
-
Colour
EV000202
-
Material housing
EV000139
-
DIN-rail
TRUE
-
Mounting method
EV000384
-
With lock
FALSE
-
EMC-version
FALSE
-
Degree of protection (IP)
EV006415
-
Type of cover
EV004216
-
Transparent cover/door
TRUE
-
Type of closure
EV000154
-
Cover model
EV000116
-
Signal passing door
TRUE
-
Width in number of modular spacings
12
-
Earthing terminal block
TRUE
-
Neutral terminal block
TRUE
-
Number of rows
2
-
Width
268
-
Depth
102
-
Internal depth
80
-
Height
353
This Resi9 MP enclosure is a surface mounted modular enclosure. This plastic enclosure is composed of 2 rows of 12 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP40. It is provided with a smoked door. The colour of the front face is white (RAL 9003). It is intended for new or renovated installation in residential. It is equipped with 35 mm asymmetrical rail. It comes with 1 earth and 1 neutral terminal blocks with screwed connection terminals. The earth terminal block provides 16 outgoers (2x16mm² + 8x10mm² + 6x6mm²). The neutral one provides 16 outgoers (2x16mm² + 8x10mm² + 6x6mm²). The In rated current is up to 63A. It complies with the IEC 60670-1 and -24 standards. The total dimensions are (W) 268mm x (H) 353mm x (D) 102mm. The enclosure is made from technoplastic (back part and front face). The door is made from technoplastic. The resistance of the plastic to flames and to abnormal heat is 650°C for the door, the back part and the front face. The IK degree of protection is IK07. The operating temperature is -25°C to 60°C.
