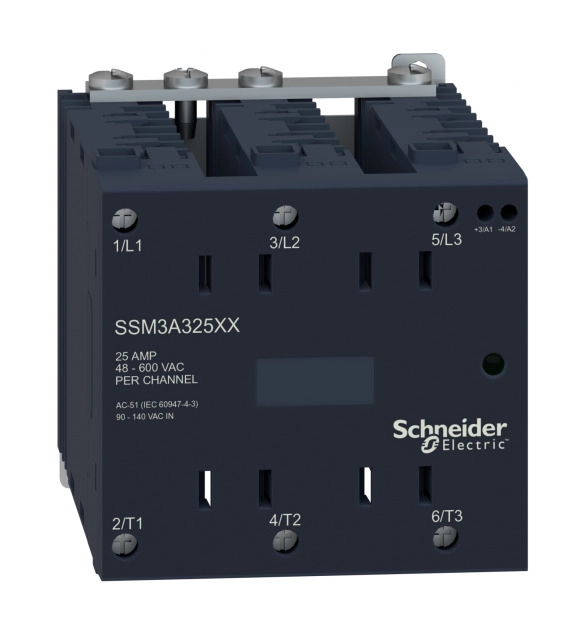

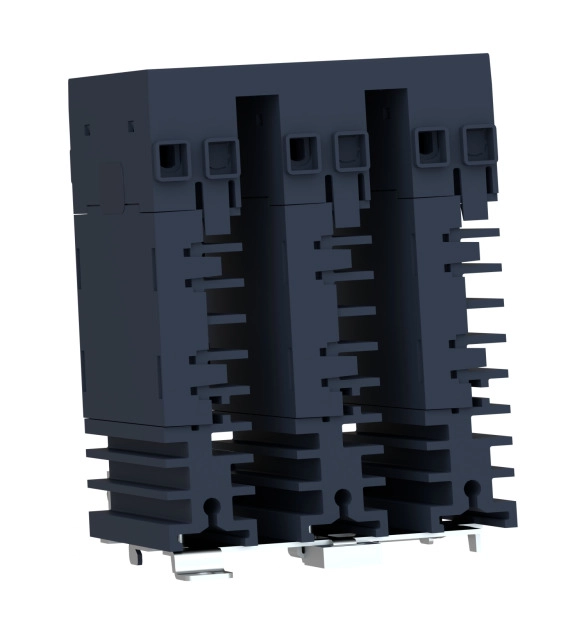

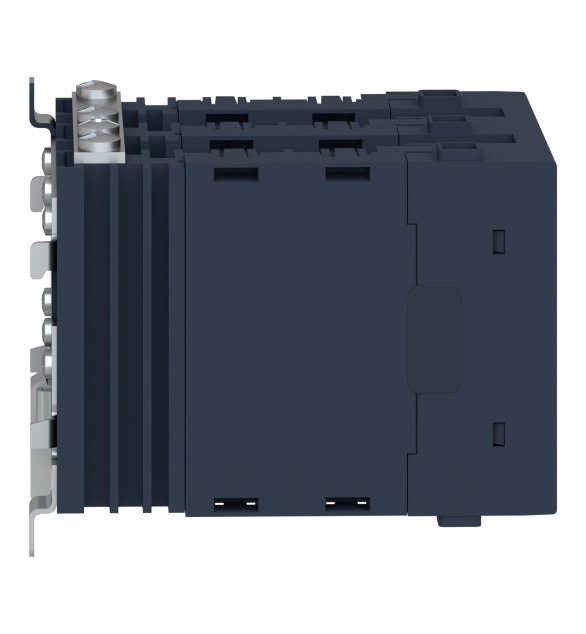

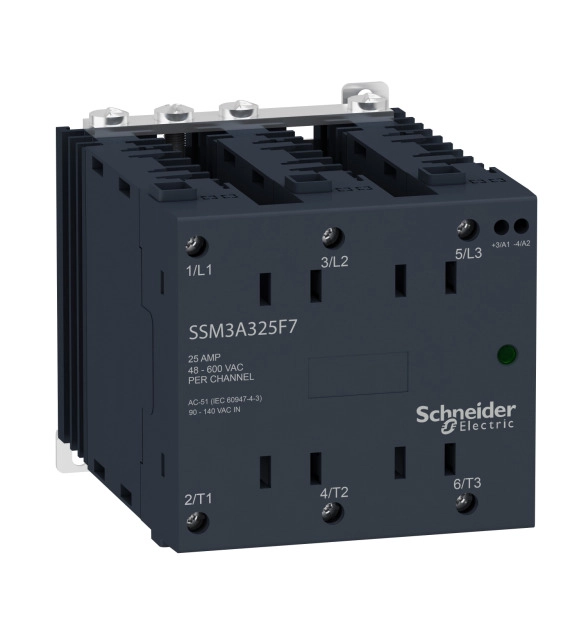

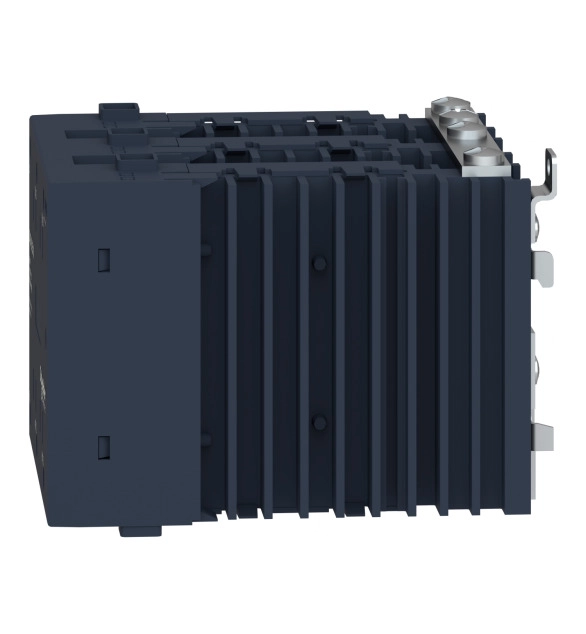

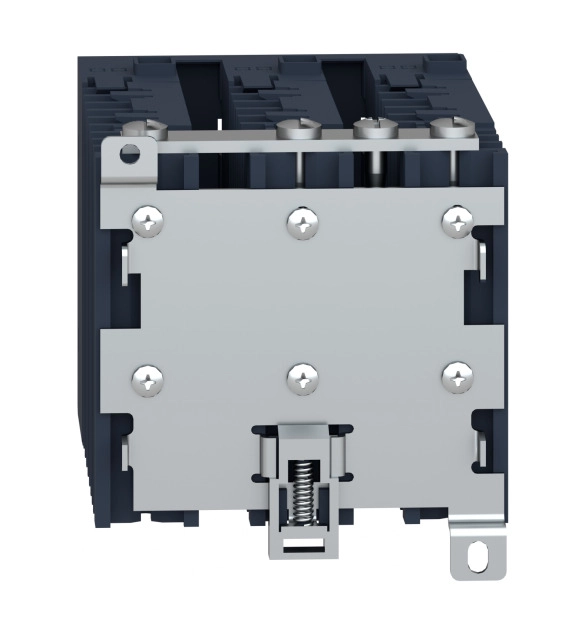

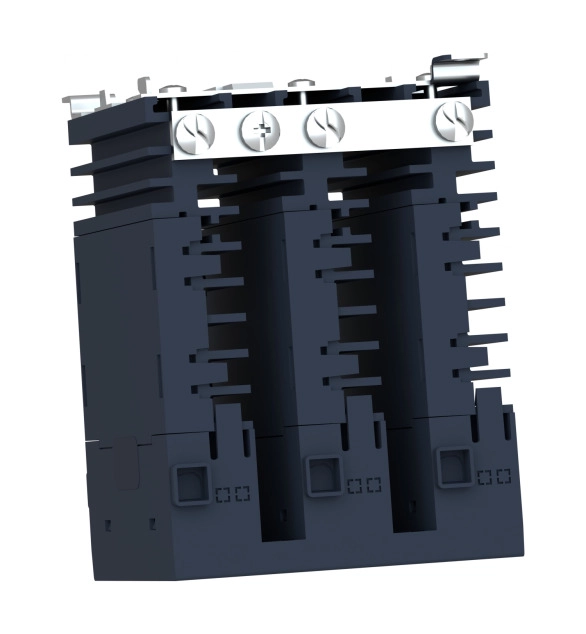

СКУ: SSM3A325F7
Harmony, Тиристорно модулно реле, 25 A, Реле за монтаж на DIN шина, превключване при нулево напрежение, вход 90…140 V AC, изход 48…600 V AC
-
Brand
Schneider Electric
-
Number of phases
1
-
Rated control supply voltage Us at AC 50HZ
24
-
Rated control supply voltage Us at AC 60HZ
24
-
Voltage type for actuating
EV000509
-
Modular version
FALSE
-
Operating voltage
24
-
Switching at zero-crossing
FALSE
-
Rated operation current Ie at AC-53a
25
-
Rated operation current Ie at AC-51
25
-
Rated operation current Ie at AC-53b
25
-
Rated operation current Ie at AC-1
25
-
Rated operation current Ie at AC-3
25
-
Rated control supply voltage Us at DC
3
This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 200V to 265V AC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance.
