СКУ: LC1D65008E7

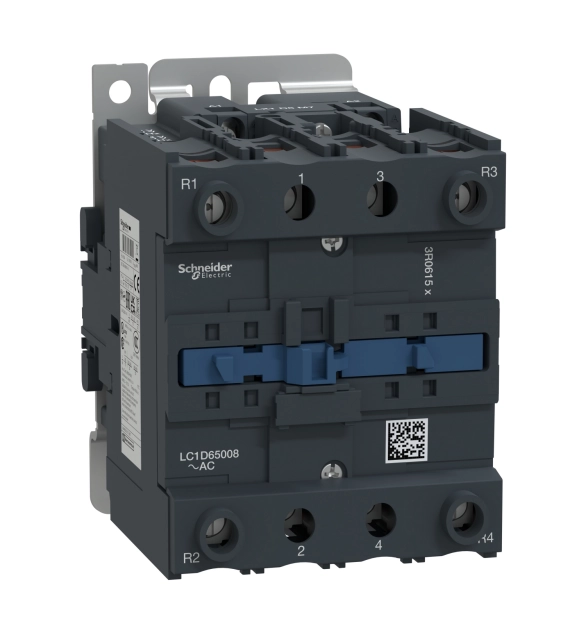

Контактор TeSys D- 4P(2NO+2NC)- AC-1 <= 440 V 80 A- 48 V AC 50/60 Hz, бобина
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Voltage type for actuating
EV000460
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
-
Rated control supply voltage Us at AC 50HZ
42
-
Rated control supply voltage Us at AC 60HZ
42
-
Modular version
FALSE
-
Rated operation current Ie at AC-1, 400 V
80
-
Number of normally closed contacts as main contact
2
-
Number of normally open contacts as main contact
2
TeSys Deca contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys Deca contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 80A resistive load rating. Contactor is supplied with a 120 VAC 50/60 Hz coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 4.92 inches deep. It weighs 3.20 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
