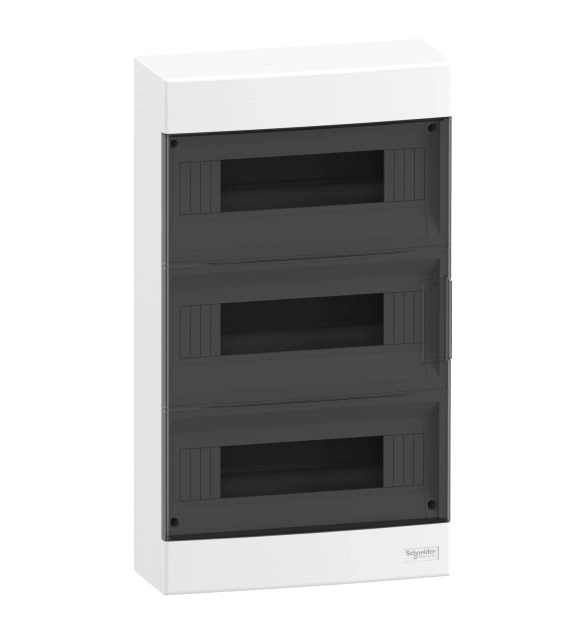

Модулно табло, Easy9 EU, открит монтаж, 3 реда 36 модула, 2 клеми земя/нула, опушена врата

This Easy9 EU product is a surface mounted modular enclosure. It is composed of 3 rows of 12 modules of 18mm. It can accommodate all types of modular switchgear. It comes with 1 earth and 1 neutral terminal blocks with their support, and each terminal block has 22 outgoers (11x16mm² + 11x10mm²). It is provided with a reversible transparent smoked door with an operating angle of 180°. The colour of the enclosure is white (RAL 9003). This enclosure is dedicated to indoor installation. The IP degree of protection is IP40 closed door and IP30 open door. There are no pre-cutouts on the enclosure and customers can use a drill machine to perform. It is intended for new or renovated installation in residential. The In rated current is up to 80A. The Ui rated insulation voltage is 500V. The Ue rated operational voltage is 400V. The internal components of the enclosure are a removable chassis with DIN rail and a front cover with notch. The dimensions are (W) 256mm x (H) 451mm x (D) 103mm. The width in 9mm pitches is 72. The product weight is 1.70kg. The enclosure is made with self-extinguishing plastic. Its resistance to flames and to abnormal heat is 650°C with a duration for 30min conforming to IEC 60695-2-10 standard. The electrical insulation class is class II (double insulated). The pollution degree is 2. According to IEC 62262 standard, the IK degree of protection is IK07. The operating temperature is from -25°C to +60°C. The storage temperature is from -25°C to +70°C. This enclosure complies with IEC 60670-1-24 standard.
