Серво двигател BMH - 18.5 Nm - 4000 rpm - с шпонка - със спирачка - IP65/IP67 | Spark & Co
  • 3D
|

СКУ: BMH1402P37F2A

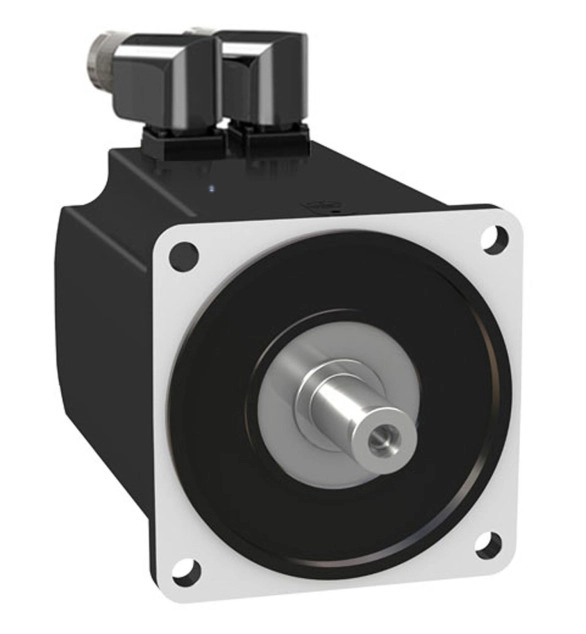

Серво двигател BMH - 18.5 Nm - 4000 rpm - с шпонка - със спирачка - IP65/IP67

  • Brand
    Schneider Electric
  • Model
    EV000154
  • Number of phases
    3
  • Voltage type
    EV000509
  • Rated voltage
    230
  • Degree of protection (IP)
    EV000154
  • Rated frequency
    50
  • Material housing
    EV000154
  • Number of poles
  • Operating temperature
  • Construction type
    EV000154
  • Bearing
    EV000154
  • Motor efficiency class
    EV000154
  • Overload capability
    FALSE
  • Cooling method
    EV000154
  • Shaft end type
    EV000154
  • Vacuum pressure impregnation (VPI)
    EV000154
  • With positive temperature coefficient resistor (PTC)
    FALSE
  • With resistance temperature detector (RTD)
    FALSE
  • Intrinsic safety (IS)
    EV000494
  • Suitable for frequency control
    FALSE
  • With anti-condensation
    FALSE
  • Duty cycle
    EV000154
  • Starting torque ratio
  • Breakdown torque ratio
  • Starting current ratio
  • Insulation class according to IEC
    EV000154
  • Nominal torque
    25

This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 4000RPM, a keyed shaft end, without holding brake. It is equipped with a single-turn encoder type SinCos Hiperface. It has two straight connectors dedicated to power and encoder cables. It has a rated supply voltage of 480V, a continuous stall current of 8.58A, a continuous power of 2.85W, and a continuous stall torque of 10.3Nm. Its degree of protection is IP54 rated. The motor flange size is 140mm, fixed by 4x 11mm holes. The circle diameter of the mounting holes is 165mm. It weighs 8kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AD30M2, LXM32SD30M2, LXM32MD30M2, LXM32CD30M2, LXM32AD30N4, LXM32SD30N4, LXM32MD30N4, and LXM32CD30N4 servo drives. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.
