Модулно ел. табло за стоящ монтаж, PanelSeT SFN, декарбонизирана стомана, 2200X400X600мм, IP55 | Spark & Co
  • 3D
  • 3D
|

СКУ: NSYSFN22460

Модулно ел. табло за стоящ монтаж, PanelSeT SFN, декарбонизирана стомана, 2200X400X600мм, IP55

  • Brand
    Schneider Electric
  • With mounting plate
    FALSE
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • Degree of protection (IP)
    EV006420
  • Surface finishing
    EV008895
  • Material
    EV000179
  • Degree of protection (NEMA)
    EV000154
  • With glazed door
    FALSE
  • Number of doors
    1
  • Depth
    600
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Width
    400
  • Height
    2200
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Suitable for metrical mounting
    TRUE
  • Pitched roof
    FALSE
  • Floor standing wall model
    TRUE
  • Corner model
    FALSE
  • Suitable for wall mounting
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Pole fastening
    FALSE
  • Impact strength
    EV008784
  • Connectable
    TRUE
  • Number of locks
    1
  • Intermediate mounting
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
  • Max. permissible load of the door(s) according to IEC 62208
  • Max. permissible load of the enclosure according to IEC 62208
  • Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
    478

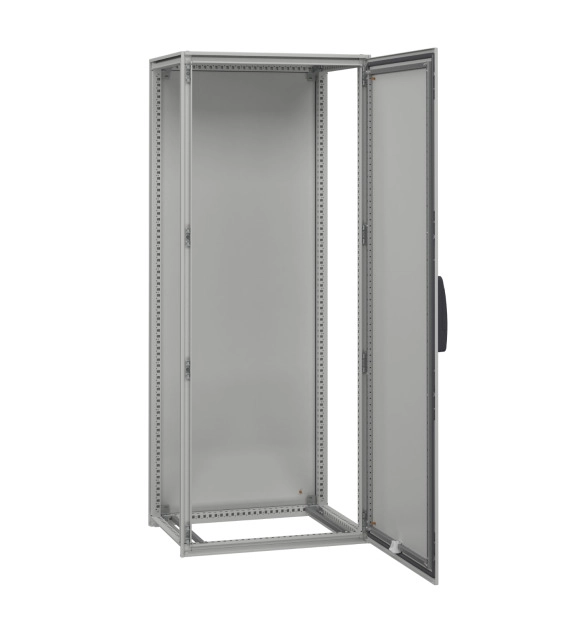

This PanelSeT SFN is a floor standing modular decarbonized steel electrical enclosure that is suitable for multi-purpose applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. It has a nominal height, width, and depth of 2200 mm, 400 mm and 600 mm, respectively. The frame and uprights of the enclosure are made of galvanized steel for durability. The door and panels are made of steel sheets, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color with a black (RAL 9005) handle, one plain door, one rear panel and one roof. The door has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. The door has a four-point lock with a handle that has a 5 mm double-bar insert for security. The enclosure has an IP55 rating, which makes it resistant to dust, water and oil ingress. The enclosure is also resistant to impacts, with an IK10 rating. Operation is convenient due to rear, front, and side access.
