СКУ: MIP22112
Enclosure, Resi9 MP, вграден монтаж, 1 ред от 12 модула, IP40, бяла вратичка, 1 земя + 1 нула клеморед
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
Extension possible
FALSE
-
RAL-number
9003
-
Transparent cover/door
FALSE
-
Signal passing door
FALSE
-
Colour
EV000202
-
Material housing
EV000139
-
Number of rows
1
-
DIN-rail
TRUE
-
With lock
FALSE
-
EMC-version
FALSE
-
Degree of protection (IP)
EV006415
-
Type of cover
EV004216
-
Type of closure
EV000154
-
Cover model
EV000116
-
Width in number of modular spacings
12
-
Earthing terminal block
TRUE
-
Neutral terminal block
TRUE
-
Mounting method
EV000383
-
Depth
98
-
Built-in depth
80
-
Width
294
-
Height
252
-
Internal depth
76

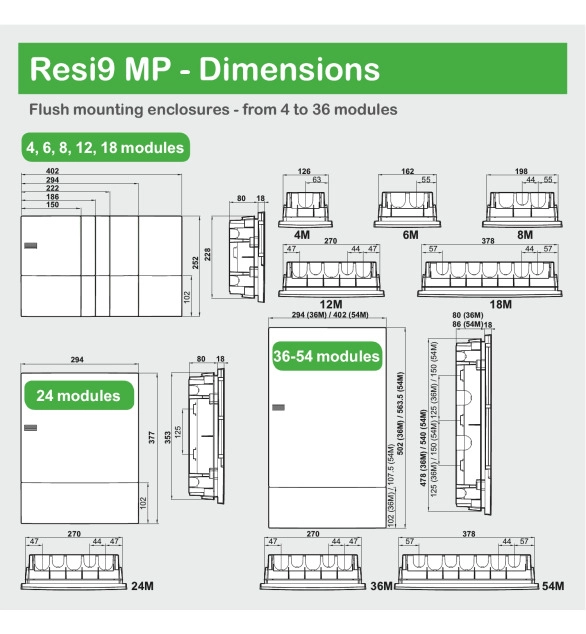

This Resi9 MP enclosure is a flush mounted modular enclosure. This enclosure is composed of 1 row of 12 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP40. It is provided with a plain white door. The colour of the front face is white (RAL 9003). It is intended for new or renovated installation in residential. It is equipped with 35 mm asymmetrical rail. It comes with 1 earth and 1 neutral terminal blocks with screwed connection terminals. The earth terminal block provides 8 outgoers (1x16mm² + 4x10mm² + 3x6mm²). The neutral one provides 8 outgoers (1x16mm² + 4x10mm² + 3x6mm²). The In rated current is up to 63A. It complies with the IEC 60670-1 and -24 standards. The total dimensions are (W) 294mm x (H) 252mm x (D) 98mm. The enclosure is made from technoplastic (back part and front face). The door is made from technoplastic. The resistance of the plastic to flames and to abnormal heat is 750°C for the door and the front face and 850°C for the back part. The IK degree of protection is IK07. The operating temperature is -25°C to 60°C.
