СКУ: HMIP6ABCTO
Модулна кутия PC, Harmony P6, Intel Atom x6211E, 2 ядра, 4 GB,за конфигурирани продукти
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Height
165
-
Supporting protocol for SERCOS
FALSE
-
Radio standard GPRS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Radio standard GSM
FALSE
-
Radio standard UMTS
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Radio standard Bluetooth
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Radio standard Wi-Fi 802.11
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
IO link master
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Rail mounting possible
FALSE
-
Supporting protocol for Modbus
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Supporting protocol for other bus systems
FALSE
-
Degree of protection (NEMA)
EV000154
-
Suitable for other operating system
TRUE
-
Suitable for operating system Windows CE
FALSE
-
Suitable for operating system Linux
FALSE
-
Suitable for operating system Windows 8
FALSE
-
Suitable for operating system Windows 2003 Server
FALSE
-
Suitable for operating system Windows Vista
FALSE
-
Suitable for operating system Windows 7
FALSE
-
Suitable for operating system Windows 9x
FALSE
-
Suitable for operating system Windows XP
FALSE
-
Suitable for operating system Windows ME
FALSE
-
Suitable for operating system Windows 2000
FALSE
-
Number of HW-interfaces RS-422
2
-
Number of HW-interfaces RS-485
2
-
Number of HW-interfaces RS-232
2
-
Number of HW-interfaces other
1
-
Number of HW-interfaces USB
2
-
Wall mounting/direct mounting
TRUE
-
Width
250
-
Depth
37
-
Number of HW-interfaces industrial Ethernet
2
-
Construction type housing
EV005762
-
With floppy disc drive
FALSE
-
With sound card
FALSE
-
With optical drive
FALSE
-
Processor type
EV000154
-
With other storage media
TRUE
-
With graphic card
FALSE
-
With hard disc
FALSE
-
Preinstalled operating system
EV000494
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces serial TTY
-
Number of HW-interfaces Wireless
-
Number of free AGP-slots
-
Number of free PCI-slots

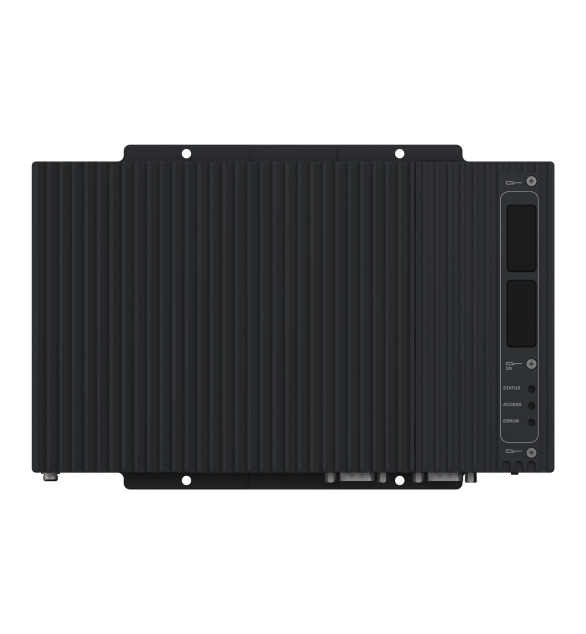

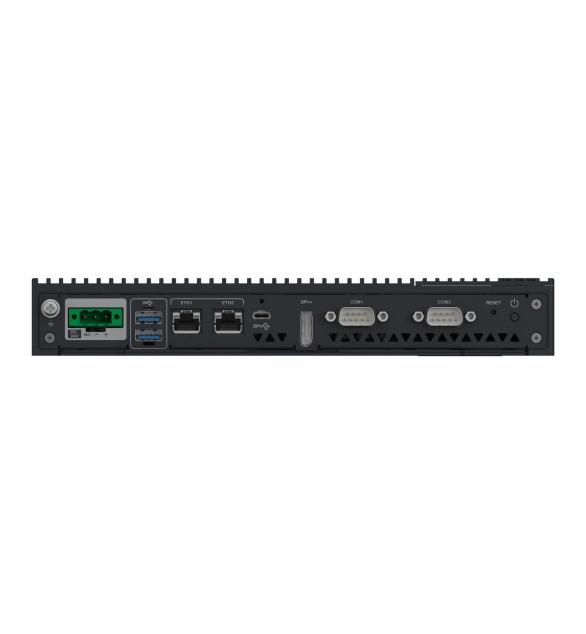

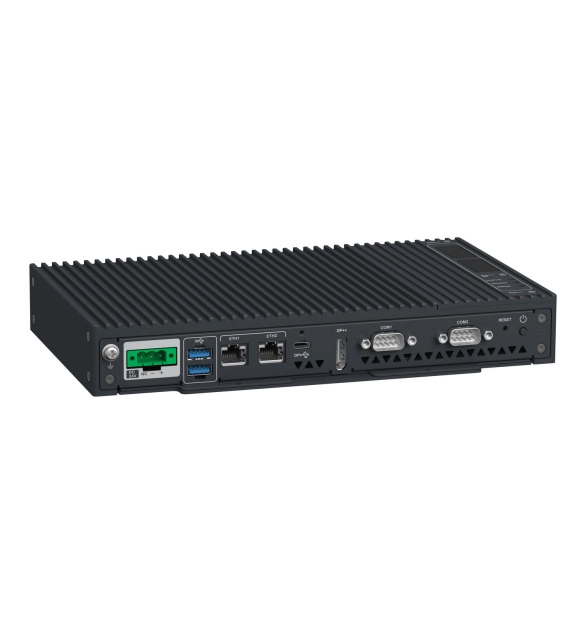

This modular box PC belongs to Schneider Electric's Harmony HMI P6 range. It comes with Windows 10 (64-bit) operating system, Node-RED software package and Intel Atom, 2-core processor. It is equipped with 4 GB RAM DDR4 internal memory. The modularity of the iPC display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. This edge box supports 2x Ethernet port, 2x COM (RS232/422/458), 2x USB Type A, 1x USB Type C, and 1x display port. The associated software are Vijeo Designer, EcoStruxure Machine SCADA Expert, and EcoStruxure Augmented Operator Advisor. The EcoStruxture Secure Connect, Secure password boot, and Trellix allowlist provide end-to-end cybersecurity. This product works at a power consumption of 45 W and a rated voltage of 12...24 V DC. Its dimensions are 250 mm (width) x 165 mm (height) x 67 mm (depth) and it weighs 1.7 kg. This modular box PC comes with IP20, Type 4X (NEMA indoor use only), and Type 13 degree of protection. This product is CE, cULus, RCM, UL, CSA, UKCA certified and conforms to EN/IEC 61000-4-2, IEC 61000-4-4, EN/IEC 61131-2, FCC part 15 and UL 61010-2-201 standards. This is a configured-to-order offer and is compatible with HMIDM6 Modular Displays. This Box PC supports wall, flat, book, and panel mounting. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.
