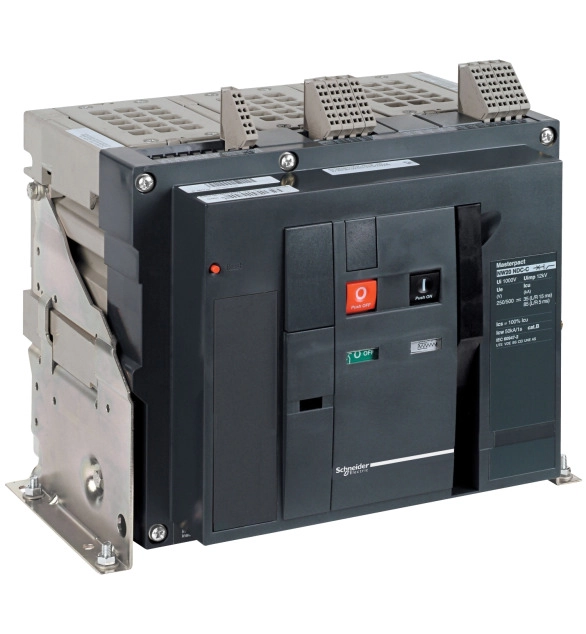

Товаров прекъсвач Masterpact NW10HA10 - 1000 A - 1150 V - 3 полюса - изваждащ се

• Brand
  Schneider Electric
• Type of electrical connection of main circuit
  EV000415
• Version as emergency stop installation
  FALSE
• Version as reversing switch
  FALSE
• Number of poles
  3
• Version as safety switch
  FALSE
• Suitable for distribution board installation
  FALSE
• Number of switches
  1
• Motor drive integrated
  FALSE
• Suitable for intermediate mounting
  FALSE
• Suitable for front mounting centre
  FALSE
• Version as main switch
  TRUE
• Interlockable
  TRUE
• Version as maintenance-/service switch
  TRUE
• Colour control element
  EV000206
• Suitable for front mounting 4-hole
  FALSE
• Suitable for floor mounting
  TRUE
• Rated short-time withstand current lcw
  50
• Rated permanent current Iu
  1600
• Motor drive optional
  TRUE
• Type of control element
  EV000554
• Device construction
  EV009210
• Number of auxiliary contacts as change-over contact
  5
• Voltage release optional
  TRUE
• Degree of protection (IP), front side
  EV006410
• Rated permanent current at AC-23, 400 V
  1600
• Number of auxiliary contacts as normally closed contact
• Number of auxiliary contacts as normally open contact
• Max. rated operation voltage Ue AC
  1150
• Rated operating voltage
  1150
