СКУ: NSYDLM168

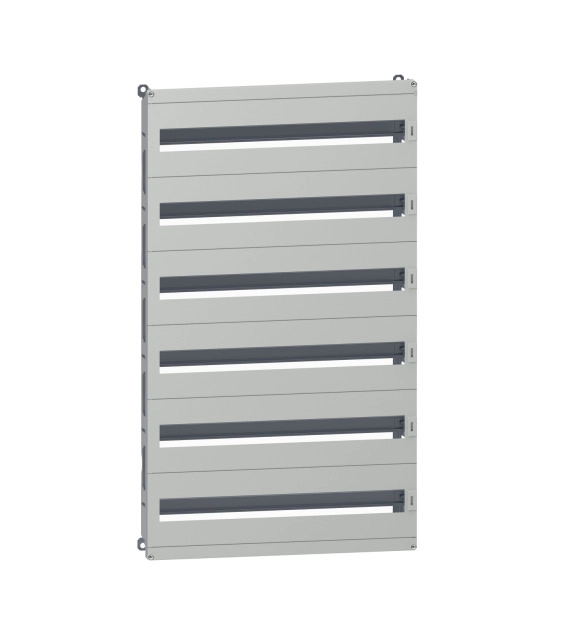

Модулна рамка 168м H1000хW600
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
Width
555
-
Type of cover
EV009916
-
With cover
TRUE
-
Depth
101.5
-
With N-PE clamp
TRUE
-
Height
753
-
Number of modular spacings per DIN-rail
28
-
Number of DIN-rails
4
DL chassis for PanelSeT S3X and PanelSeT CRN enclosures The chassis is to be fixed on front of enclosure by fixing elements - on back with supports location The width is 355mm The height is 555mm The depth is 110mm Number of 18mm modules is 64 (1 module = 2 steps = 18 mm) Number of horizontal rows is 4 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The product is made from grey steel (RAL 7035) The front has a grey (RAL 7035) color Number of cut-outs is 4 The kit is made up of 1 chassis structure, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 1 front panel and 4 35mm DIN rails Anti-corrosion protection is ensured by an polyester powder coating
