SCHNEIDER ELECTRIC Fuse carrier, TeSys DF, 2P, 32A, 690VAC, fuse size: 10x38mm, blown fuse indicator | Spark & Co
  • 3D
|

СКУ: DF102V

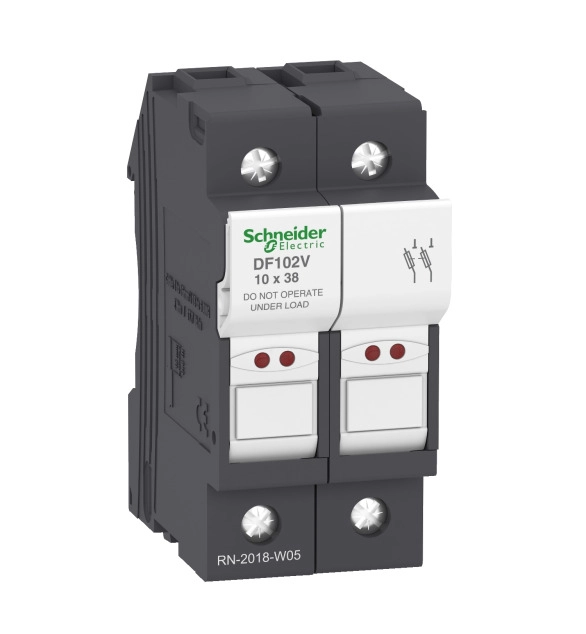

SCHNEIDER ELECTRIC Fuse carrier, TeSys DF, 2P, 32A, 690VAC, fuse size: 10x38mm, blown fuse indicator

  • Brand
    Schneider Electric
  • Built-in depth
    56.5
  • Degree of protection (IP)
    EV006405
  • Concurrently switching neutral conductor
    FALSE
  • Lockable
    TRUE
  • Mounting method
    EV000242
  • Number of poles
    2
  • Width in number of modular spacings
    2
  • With optical defect indication
    TRUE
  • Nominal voltage
    690
  • For fuse size
    EV010286

TeSys DF modular fuse carrier, 2 poles (2P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA at 400V. It provides blown fuse indication by LED. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine).
