Мет. табло CRN 800X800X200 без МП NSYCRN88200 | Spark & Co
  • 3D
|

СКУ: NSYCRN88200

Мет. табло CRN 800X800X200 без МП NSYCRN88200

  • Brand
    Schneider Electric
  • With mounting plate
    FALSE
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • Surface finishing
    EV008895
  • Material
    EV000179
  • Depth
    200
  • Degree of protection (NEMA)
    EV000154
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Degree of protection (IP)
    EV006422
  • Width
    800
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Detached
    FALSE
  • Pitched roof
    FALSE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Floor standing wall model
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Height
    800
  • Suitable for metrical mounting
    FALSE
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    250
  • Max. permissible load of the door(s) according to IEC 62208
    50

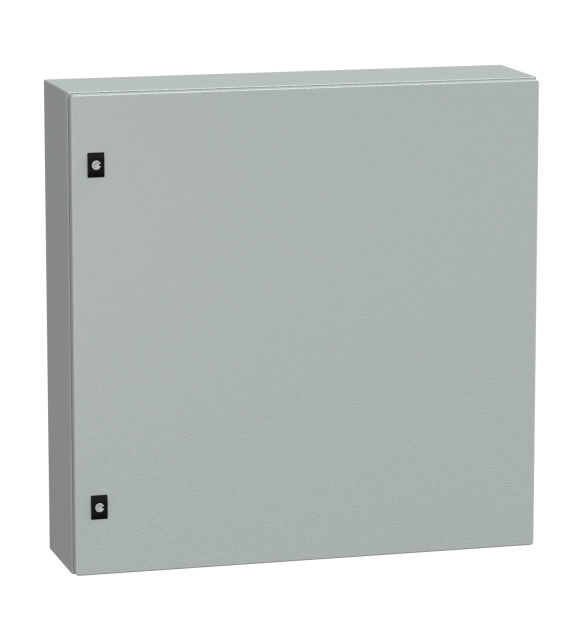

PanelSeT CRN steel wall-mounting enclosure is designed for multi-purpose applications and is certified by cUL, UL, and DNV-GL It has a nominal height, width, and depth of 800mm, 800mm, and 200mm, respectively The enclosure is grey-coloured (RAL 7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a plain door, a lock, and two cable gland plates (bottom) The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 25,813kg It has an IK10 (IEC 62262) rating and an IP66 rating (IEC 60529), making it suitable for use in harsh environments The sides are made from a single folded section and the back is welded with a double profile forming a protected sealed area The enclosure is accessible from the front
