СКУ: NSYTRV24DBL

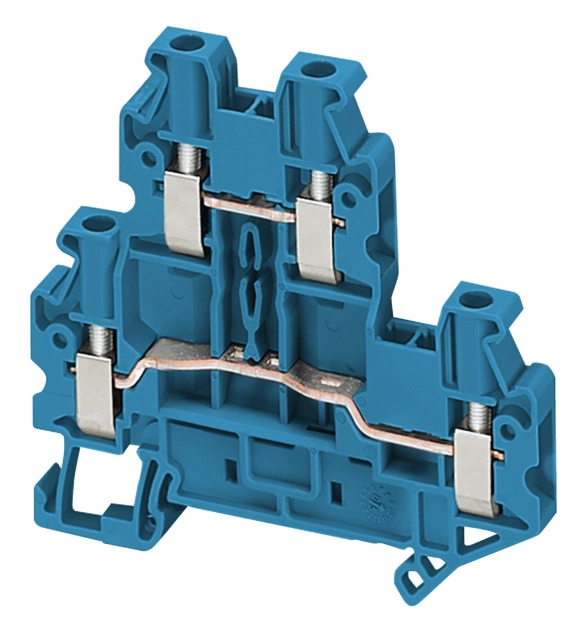

Винтови клеми Linergy - 2,5mm? 24A 1x1 с винт - син

  • Brand
    Schneider Electric
  • Mounting method
    EV005503
  • Rated voltage
    500
  • Type of electrical connection 1
    EV000415
  • Internally connected stages
    FALSE
  • Inflammability class of insulation material according to with UL94
    EV004429
  • Material insulation body
    EV000403
  • Colour
    EV000080
  • Height
    65
  • Type of electrical connection 2
    EV000415
  • Closing plate required
    TRUE
  • Connectable conductor cross section fine-strand with cable end sleeve
    0.2
  • Explosion-tested version 'Ex e'
    TRUE
  • Operating temperature
    -40
  • Number of clamp positions per level
    2
  • Width
    5.2
  • Connectable conductor cross section solid-core
    0.14
  • Connectable conductor cross section multi-wired
    0.14
  • Connectable conductor cross section fine-strand without cable end sleeve
    0.14
  • Number of levels
    2
  • Depth
    69.9
  • Rated current In
    24

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA/UL. It has blue surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV).
