Мет. табло S3D H1200XW800XD300 ONE PLAIN DO NSYS3D12830 | Spark & Co
  • 3D
|

СКУ: NSYS3D12830

Мет. табло S3D H1200XW800XD300 ONE PLAIN DO NSYS3D12830

  • Brand
    Schneider Electric
  • With mounting plate
    FALSE
  • EMC-version
    FALSE
  • RAL-number
    7035
  • Colour
    EV000270
  • Surface finishing
    EV008895
  • Material
    EV000179
  • With glazed door
    FALSE
  • Number of doors
    1
  • With backside door
    FALSE
  • Material quality
    EV000154
  • Degree of protection (NEMA)
    EV014040
  • Degree of protection (IP)
    EV006422
  • Width
    800
  • Height
    1200
  • Connectable
    FALSE
  • Suitable for outdoor set-up
    FALSE
  • Depth
    300
  • Detached
    FALSE
  • Suitable for metrical mounting
    TRUE
  • Pitched roof
    FALSE
  • Floor standing wall model
    TRUE
  • Intermediate mounting
    FALSE
  • Corner model
    FALSE
  • Suitable for wall built-in
    FALSE
  • Mounting plate depth-adjustable
    FALSE
  • With ventilation door
    FALSE
  • Suitable for wall mounting
    TRUE
  • Impact strength
    EV008784
  • Number of locks
    1
  • Pole fastening
    TRUE
  • Max. permissible load of the mounting plate according to IEC 62208
    250
  • Max. permissible load of the enclosure according to IEC 62208
    250
  • Max. permissible load of the door(s) according to IEC 62208
    50

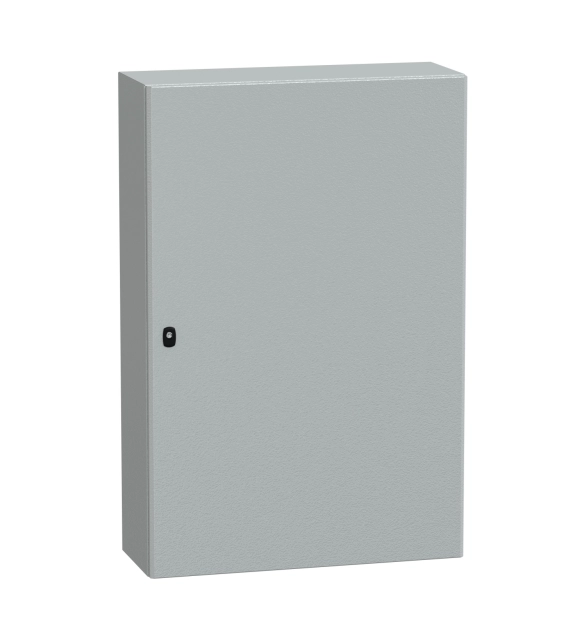

PanelSeT S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It can withstand high impact due to its IK10 (IEC62262) rating and has a high resistance to dust and water with an IP66 rating (IEC60529) and NEMA 4X/13 rating This enclosure has a nominal height, width and depth of 1200mm, 800mm and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, two cable gland plates, one plain door and a lock The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors have a three-point lock with a 3mm double-bar insert The doors and the cable gland plates can be removed for maintenance purposes The net weight of the enclosure is 45kg It is certified by DNV, UL, cUL, BV, GL and LR The variant particularity of this enclosure is a gutter-shaped front rail double sheet thickness and a single piece body The accessibility for operation is from the front
