СКУ: A9MEM1580

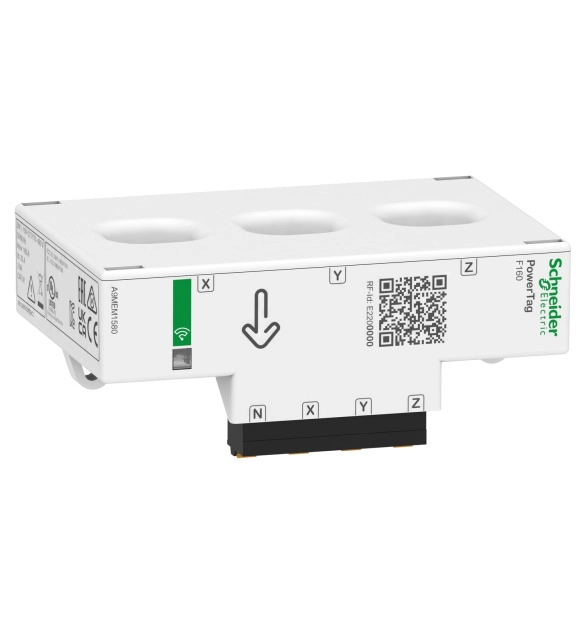

Енергиен сензор PowerTag Energy F160 3P/3PN
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Width in number of modular spacings
5
-
Frequency
50
-
Calibrated
TRUE
-
Degree of protection (NEMA)
EV000599
-
Width
91
-
Depth
62
-
Approval
EV010951
-
Escapement mechanism
FALSE
-
Accuracy class
EV000074
-
Tariff type
EV009223
-
Pole type
EV010965
-
With lock code
FALSE
-
Type of meter
EV000101
-
Nominal voltage (Un) N-L
100
-
Type of interface
EV000154
-
Model
EV010942
-
Pulse output
EV000494
-
Energy type
EV010946
-
Type of indication
EV000494
-
Mounting method
EV010967
-
Measurement type load profile
FALSE
-
EEC40 signature
FALSE
-
Suitable for
EV011029
-
Nominal voltage (Un) L-L
173
-
Height
39
-
Max. current (Imax)
160
-
Nominal current (In)
160
This PowerTag Energy F160 3P/3P+N is a wireless communication energy sensor. With its Flex design, it is dedicated to 3P and 3P+N devices with 25 to 27 mm pitch between phases, rating up to 160A. It has to be associated with a concentror or a gateway to provide circuit monitoring and diagnosis down to load level. It is designed specifically for Energy Management, Load Monitoring and Power Availability applications. It incorporates accurate real-time measurements of active, reactive and apparent energy, active, reactive and apparent power, current, voltage and power factor. In case of power outage, it sends a voltage loss alarm and the current-per-phase value before being de-energized. PowerTag Energy F160 complies with IEC 61557-12 standard. It is a PMD-II/DD/K70/1. The Performance category is Class 1. The Imax maximum current is 160A. The Ib Base current is 25A. The Saturation current is 320A and the Ist Starting current is 100mA. The Un Rated voltages are Phase-to-neutral 100 to 277VAC +/- 20% and Phase-to-phase 173 to 480VAC +/- 20%. The maximum consumption is below or equal to 3VA. It can be either mounted on the top or the bottom of the protective device. The product color is white (RAL9003). The weight is 100g. The degree of protection is IP20 and IK05. The operating temperature is between -25°C to +70°C. The storage temperature is between -40°C to +85°C.
